Wiring Guide

Wiring Guide

Special tools, testers and auxiliary items required

• Wedges (T10383)

Removing






- Remove the side lid trim panel. Refer to => [ Side Rear Lid Trim Panel ] Side Rear Lid Trim Panel.

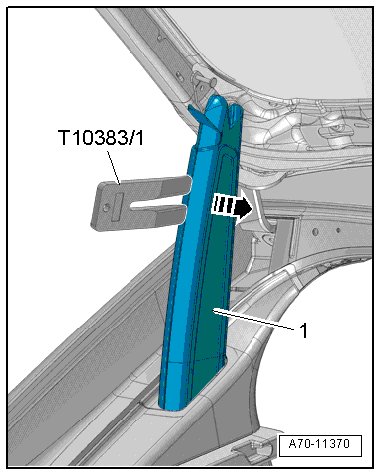

- Unclip the retainers and open the wiring guide with a wedge (T10383/1) - arrow -,

- Disengage and remove the upper wiring guide - 1 - from the rear lid.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Lower Rear Lid Trim Assembly Overview ] Lower Rear Lid Trim Assembly Overview.
