Warning Triangle Cover

Warning Triangle Cover

Removing

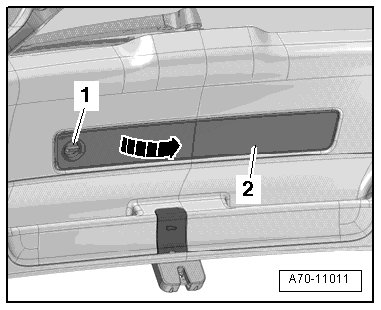

- Turn the quick release - 1 - 90° counter-clockwise and move the emergency triangle cover - 2 - - arrow -.

- Disengage the cover from the lower rear lid trim panel and remove it.

Installation

Install in reverse order of removal.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Lower Rear Lid Trim Assembly Overview ] Lower Rear Lid Trim Assembly Overview.
