Upper Rear Lid Trim Panel

Upper Rear Lid Trim Panel

Special tools, testers and auxiliary items required

• Wedges (T10383)

Removing

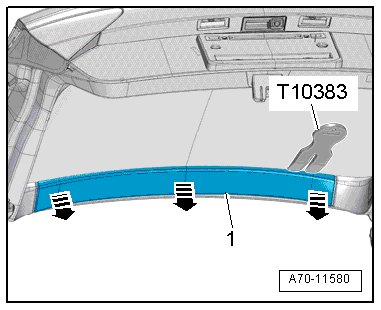

- Unclip the upper rear lid trim panel - 1 - from the rear lid - arrows - using a wedge (T10383).

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Lower Rear Lid Trim Assembly Overview ] Lower Rear Lid Trim Assembly Overview.
