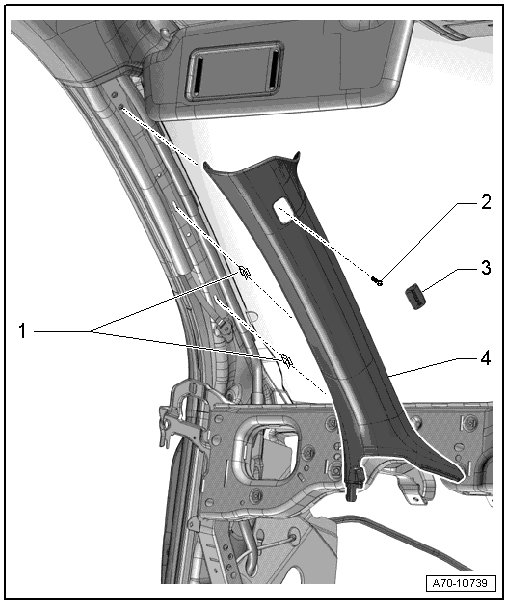

A-Pillar Upper Trim

A-Pillar Upper Trim






1 Clamps

• Install in the trim

• Replace if damaged or deformed

2 Bolt

• Always replace if removed

• Threaded screw holes must always be cleaned (for example, with thread cutter)

• 3.5 Nm

3 Cover

• With the "Airbag" symbol

• Carefully unclip

• Hangs from trim and cannot be detached

4 Upper A-Pillar Trim

• Removing and installing, refer to => [ A-Pillar Upper Trim ] A-Pillar Upper Trim
