Wagon

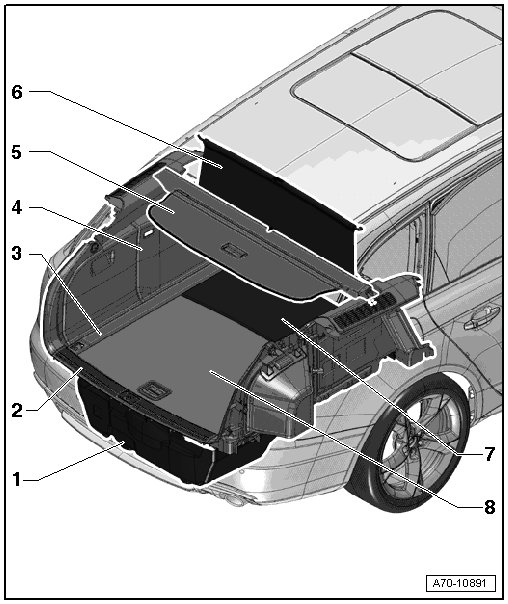

Luggage Compartment Trim






1 Spare Wheel Well Trim

• Removing and installing, refer to => [ Spare Wheel Well Trim ] Spare Wheel Well Trim

2 Rear Cross Panel Trim

• Assembly overview, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim

• Removing and installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim

3 Gap Cover Or Retaining Track

• Vehicles with special equipment

• Luggage compartment floor panel with gap covers assembly overview, refer to => [ Storage Area Floor With Gap Cover ] Storage Area Floor With Gap Cover

• Gap cover, removing and installing, refer to => [ Gap Cover ] Gap Cover

• Luggage compartment floor panel with rails assembly overview, refer to => [ Storage Area Floor With Retaining Track Rails ] Storage Area Floor With Retaining Track Rails

• Retaining tracks, removing and installing => [ Retaining Track Rails ] Retaining Track Rails

4 Luggage Compartment Side Trim

• Assembly overview, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim

5 Luggage Compartment Cover

6 Screen Separator Wall

• Assembly overview, refer to => [ Partition Screen Separator ] Partition Screen Separator

• Removing and installing, refer to => [ Partition Screen Separator on Rear Seat Backrest ] Partition Screen Separator on Rear Seat Backrest

7 Front Luggage Compartment Floor

Optional equipment:

• With gap covers

• With retaining tracks

• Luggage compartment floor panel with gap covers assembly overview, refer to => [ Storage Area Floor With Gap Cover ] Storage Area Floor With Gap Cover

• Removing and installing, refer to => [ Front Storage Area Floor ] Front Storage Area Floor

• Luggage compartment floor panel with rails assembly overview, refer to => [ Storage Area Floor With Retaining Track Rails ] Storage Area Floor With Retaining Track Rails

8 Rear Luggage Compartment Floor

Optional equipment:

• With gap covers

• With retaining tracks

• Luggage compartment floor panel with gap covers assembly overview, refer to => [ Storage Area Floor With Gap Cover ] Storage Area Floor With Gap Cover

• Luggage compartment floor panel with rails assembly overview, refer to => [ Storage Area Floor With Retaining Track Rails ] Storage Area Floor With Retaining Track Rails
