Sedan

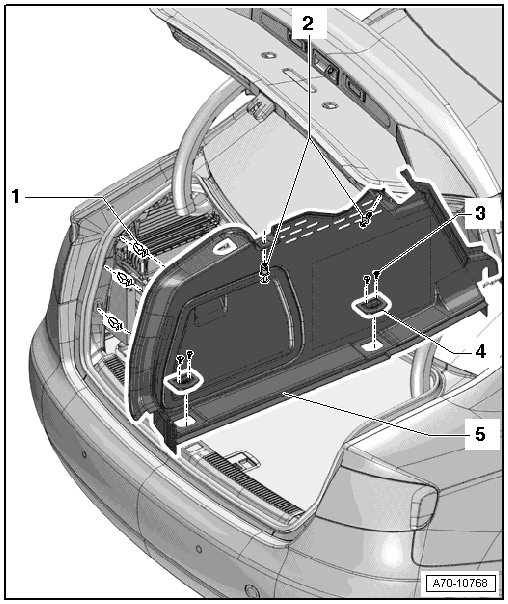

Luggage Compartment Side Trim






1 Clips

• Quantity: 3

• Install in the trim

• Replace if damaged or deformed

2 Expanding Clips

• Quantity: 2

3 Bolt

• Quantity: 4

• 6 Nm

4 Tie-Down Eye

• Quantity: 2

• Removing and installing, refer to => [ Tie Downs ] Tie Downs

5 Luggage Compartment Side Trim

• Removing and installing, refer to => [ Luggage Compartment Side Trim Panel ] Luggage Compartment Side Trim Panel

Tightening specification, retaining hooks to body





- Versions with retaining hooks: tighten the screws - arrows - to 1.5 Nm.
