Rear Window Wiper Motor

Rear Window Wiper Motor

Removing

- Remove wiper arm. Refer to => [ Rear Window Wiper Arm ] Rear Window Wiper Arm.

- Remove lower luggage compartment lid trim.

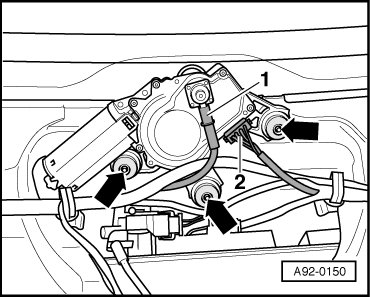

- Disconnect electrical connector - 2 -.






- Remove washer fluid hose - 1 - from spray nozzle connecting hose.

- Remove the nuts - arrows - and remove wiper motor.

Installing

Install in reverse order of removal, observing the following:

- Carefully attach rubber seal in rear window opening.

• Washer fluid hose must engage audibly into spray jet connector.

- Switch on ignition.

- Activate the rear window wiper and allow the wiper motor to move to end position.

- Turn off the ignition.

- Install lower rear lid trim.

- Adjust wiper arm. Refer to => [ Rear Window Wiper Arm, Adjusting ] Rear Window Wiper Arm, Adjusting.
