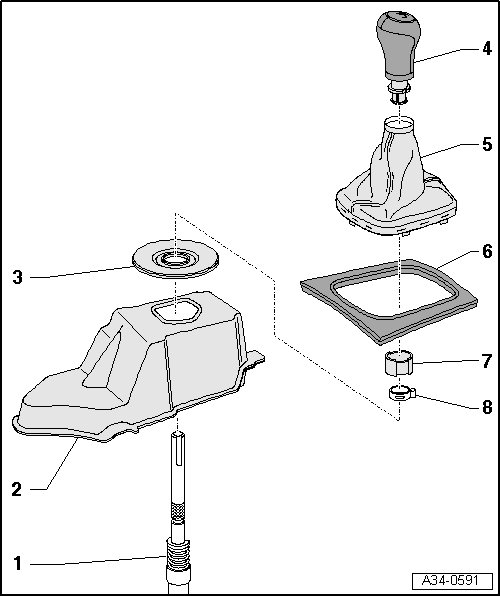

Shift Knob and Shift Lever Boot Overview

Shift Knob and Shift Lever Boot Overview






1 Selector Lever

2 Lower Noise Insulation

3 Upper Noise Insulation

4 Shift Lever Knob

• Remove and install together with shift boot, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

5 Shift Lever Boot

• Removing and installing together with shift knob, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

6 Cover for Center Console

• Remove and install together with shift knob and shift boot, refer to => [ Shift Knob with Shift Lever Boot ] Shift Knob with Shift Lever Boot

7 Connecting Piece

• Connects the shift lever boot to the shift knob

8 Clamp

• To secure shift knob on shift lever

• Securing with Hose Clamp Pliers (V.A.G 1275)
