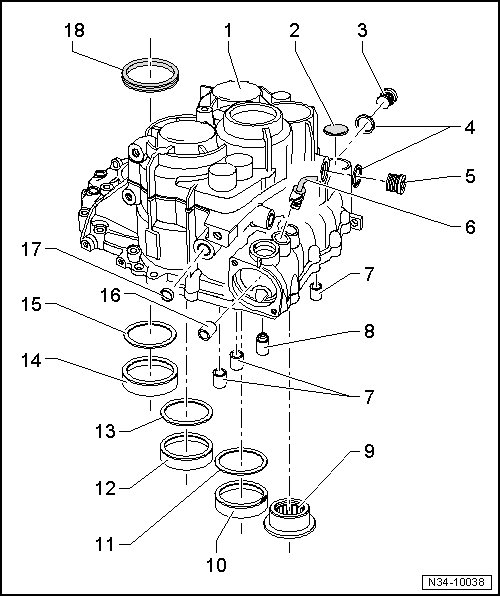

Transmission Housing Overview

Transmission Housing Overview






1 Transmission Housing

• If replacing: Adjust output shafts and differential, refer to => [ Adjustment Overview ] Adjustment Overview

• Changes to the grooved ball bearing/input shaft mount area

• Allocate components shims using the, refer to the Parts Catalog.

2 Sealing Cap

• Removing, refer to => [ Removing Cap ] Transmission Housing

• Driving in, refer to => [ Drive in Cap Until Stop ] Transmission Housing

3 Oil Drain Plug

• Tightening specification => [ Tightening Specifications ] Service and Repair

4 Oil Seal

• If installed, always replace

5 Oil Filler Plug

• Tightening specification => [ Tightening Specifications ] Service and Repair

6 Lock Elbow

• For adjustment of shift mechanism, refer to => [ Shift Mechanism, Adjusting ] Adjustments

• Can be replaced with non-disassembled transmission

• Removing, refer to => [ Removing Lock Elbow for Selector Shaft ] Transmission Housing

• Installation location, refer to => [ Installation Position of Lock Elbow ] Transmission Housing

• Driving in, refer to => [ Drive Lock Bracket for Shift Rod in to Tool Stop. ] Transmission Housing

7 Bushing

• For selector rods

• Pulling out, refer to => [ Pulling Out Bearing Bushing for Selector Rod ] Transmission Housing

• Driving in, refer to => [ Driving in Bushing for Selector rod to Tool Stop ] Transmission Housing

8 Lock Sleeve

• Pressing off with transmission disassembled, refer to => [ Pressing Lock Sleeve Out of Transmission Housing ] Transmission Housing

• Driving off with non-disassembled transmission, refer to => [ Driving Out Lock Sleeve for Non-Disassembled Transmission Using ] Transmission Housing

• Lock sleeve differentiation, refer to => [ Lock Sleeve Differentiation ] Transmission Housing

• Lock sleeve with shoulder, driving in, refer to => [ Drive in Lock Sleeve With Shoulder as Far as Stop on Tool ] Transmission Housing

• Lock sleeve without shoulder, driving in, refer to => [ Drive in Lock Sleeve Without Shoulder as Far as Stop on Tool ] Transmission Housing

9 Needle Bearing

• For reverse shaft

• Replace after each disassembly

• Pulling out, refer to => [ Pulling Needle Bearing for Reverse Shaft Out of Transmission Housing ] Transmission Housing

• Installing, refer to => [ Pressing Needle Bearing Into Transmission Housing ] Transmission Housing

10 Tapered Roller Bearing Outer Race

• For output shaft for 5th/6th and reverse gear

• Removing and installing, refer to => [ Output Shaft, 5th, 6th and Reverse Gears ] Output Shaft, 5th, 6th and Reverse Gears

• If replacing: Adjusting output shaft for 5th/6th and reverse gear, refer to => [ Output Shaft, 5th, 6th and Reverse Gears, Adjusting ] Output Shaft, 5th, 6th and Reverse Gears, Adjusting

11 Adjustment Shim

• For output shaft for 5th/6th and reverse gear

• Adjustment overview, refer to => [ Adjustment Overview ] Adjustment Overview

12 Tapered Roller Bearing Outer Race

• For output shaft for 1st to 4th gear

• Removing and installing, refer to => [ Output Shaft, 1st to 4th Gears ] Output Shaft, 1st to 4th Gears

• If replacing: Adjusting output shaft for 1st to 4th gear, refer to => [ Output Shaft, 1st to 4th Gears Overview ] Output Shaft, 1st to 4th Gears Overview

13 Adjustment Shim

• For output shaft for 1st to 4th gear

• Adjustment overview, refer to => [ Adjustment Overview ] Adjustment Overview

14 Tapered Roller Bearing Outer Race

• For the differential

• Removing and installing, refer to => [ Differential Assembly Overview ] Description and Operation

• If replacing: adjusting the differential, refer to => [ Adjustment Overview ] Adjustment Overview

15 Adjustment Shim

• For the differential

• Adjustment overview, refer to => [ Adjustment Overview ] Adjustment Overview

16 Bushing

• For selector shaft

• Pulling out, refer to => [ Pulling Out Bushing for Selector Shaft ] Transmission Housing

• Driving in, refer to => [ Driving Bearing Bushing for Selector Shaft in to Tool Stop ] Transmission Housing

17 Sealing Plug

• Driving out, refer to => [ Driving Out Sealing Plugs ] Transmission Housing

• Driving in, refer to => [ Driving in Sealing Plugs ] Transmission Housing

18 Oil Seal

• Replace, refer to => [ Left Flange Shaft Seal ] Left Flange Shaft Seal
