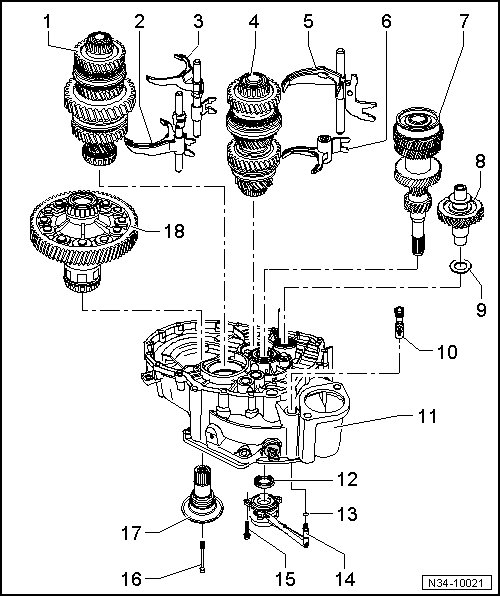

Input Shaft, Output Shaft, Differential and Shift Rods Overview
Input Shaft, Output Shaft, Differential and Shift Rods Overview
1 Output Shaft, 1st to 4th Gears
• Disassembling and assembling, refer to => [ Output Shaft, 1st to 4th Gears Overview ] Output Shaft, 1st to 4th Gears Overview
• Installation location
2 Selector Rod with Shift Fork for 1st and 2nd Gear
3 Selector Rod with Shift Fork for 3rd and 4th Gear
4 Output Shaft 5th/6th Gear/Reverse Gear
• Disassembling and assembling, refer to => [ Output Shaft, 5th, 6th and Reverse Gears ] Output Shaft, 5th, 6th and Reverse Gears
5 Selector Rod with Shift Fork for 5th and 6th Gear
6 Reverse Gear Shift Fork
7 Input Shaft
• Disassembling and assembling, refer to => [ Input Shaft ] Input Shaft
• Always replace grooved ball bearings on input shaft - item 6 - => [ (Item 6) Grooved Ball Bearing ] Input Shaft Overview
8 Reverse Shaft
• With thrust washer
9 Thrust washer
10 Bleeder
• Connect with slave cylinder - item 14 - => [ (Item 14) Slave Cylinder with Release Bearing ]
11 Clutch Housing
• Servicing, refer to => [ Clutch Housing ] Clutch Housing
12 Input Shaft Seal
13 O-ring
• Replace
• Pull onto line connection
• Coat with brake fluid before installing
14 Slave Cylinder with Release Bearing
15 Bolt
• For metal slave cylinder, 12 Nm
• For plastic slave cylinder, 15 Nm
• Quantity: 3
• Replace
16 Countersunk Bolt
• 33 Nm
17 Stub Shaft or Flange Shaft
• A new flange shaft was installed from transmission build date 01 11 4
• Allocation
• Assembling, refer to => [ Differential Assembly Overview ] Description and Operation
18 Differential
• Disassembling and assembling, refer to => [ Differential Assembly Overview ] Description and Operation

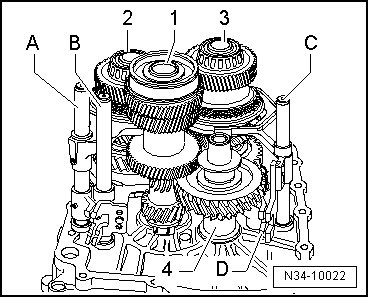

Installation Position of Shafts and Selector Rods in Transmission
1 Input Shaft
2 Output Shaft, 1st to 4th Gears
3 Output shaft 5th/6th gear/reverse gear
4 Reverse Shaft
A Selector rod for 3rd and 4th gear
B Selector rod for 1st and 2nd gear
C Selector rod for 5th and 6th gear
D Reverse gear shift fork
