Stationary Selector Mechanism Cover

Stationary Selector Mechanism Cover

Removing

- Remove the handle on the selector lever. Refer to => [ Selector Lever Handle, with Stationary Selector Mechanism Cover ] Selector Lever Handle, With Stationary Selector Mechanism Cover.

- Turn off the ignition.

- Open the ashtray in the center console.

- Remove the cover for the selector lever - arrows -.

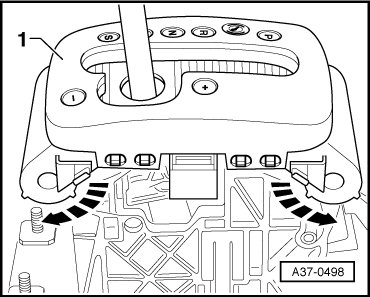

- Release all 4 clips - arrows - and pull cover - 1 - with guide upwards to remove.





- Disconnect the connector.

Installation

Install in reverse order, paying attention to the following:

• When connecting the electrical connector, make sure that the contacts of the circuit board do not bend and that the tabs of the cover are not cancelled.

- Install the handle on the selector lever. Refer to => [ Selector Lever Handle, with Stationary Selector Mechanism Cover ] Selector Lever Handle, With Stationary Selector Mechanism Cover.
