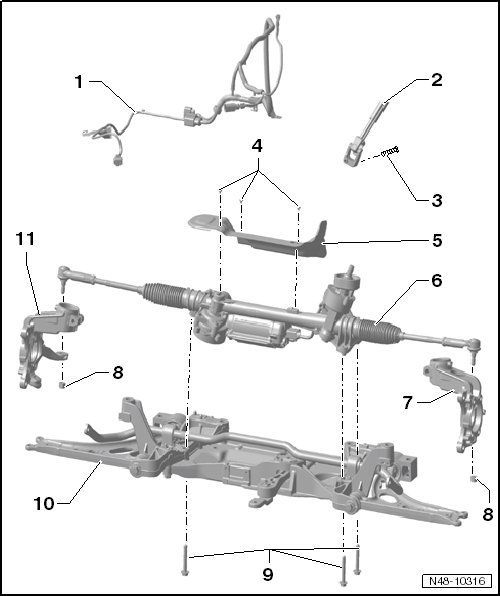

Steering Gear Overview, Generation III

Steering Gear Overview, Generation III






1 Electrical Wiring

2 Universal Joint

3 Bolt

• 20 Nm + 90° turn

• Always replace if removed.

4 Bolt

• 6 Nm

5 Heat Shield

6 Steering Gear

• There are different versions. Refer to the Electronic Parts Catalog (ETKA).

• With power steering control module (J500)

• Can be checked in "Guided Fault Finding" using the vehicle diagnostic tester

7 Left Wheel Bearing Housing

8 Nut

• Tightening specification => [ (Item 6) Nut ] Steering Gear Overview, Generation I and II

• Always replace if removed.

9 Bolt

• 50 Nm + 90° turn

• Always replace if removed.

10 Subframe with Brackets

11 Right Wheel Bearing Housing
