Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor

Special tools, testers and auxiliary items required

• Drip tray

Removing

- Switch off ignition and remove ignition key.

- Remove the front section of the front right wheel housing liner.

- Remove fog lamp. Refer to => [ Fog Lamp, through 05.2008 ] Fog Lamp, Through 05.2008.

- Place a drip tray under the windshield washer fluid reservoir.

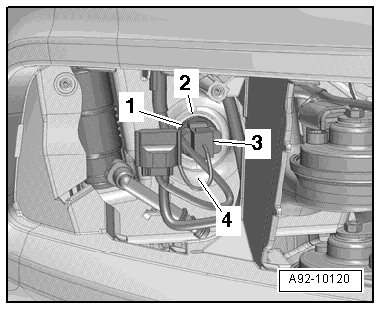

- Disconnect the electrical connector - 3 -.






- Remove the windshield washer fluid level sensor (G33) - item 1 - from the washer fluid reservoir - 4 -.

Installing

Install in reverse order of removal, observing the following:

- Check the sealing grommet - 2 - for damage.

- Install fog lamp. Refer to => [ Fog Lamp, through 05.2008 ] Fog Lamp, Through 05.2008.

- Install the front section of the front right wheel housing liner.
