NOx Reduction Catalytic Converter

NOx Reduction Catalytic Converter

Removing

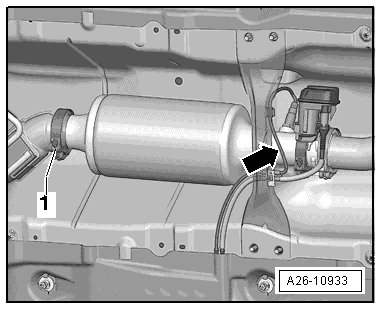

- Remove the nuts - arrows - and pull the right underbody cover slightly downward.





- Disconnect the connector and free up the wire - arrow -.





- Loosen the clamp - 1 -.

- Loosen the clamp - 3 - and remove the NOx reduction catalytic converter.





Installing

Installation is in reverse order of removal, note the following:

• Installation position of the seal between the exhaust flap control module (J883) and NOx reservoir or reduction catalytic converter => [ Seal between the and NOx Reservoir or
Reduction Catalytic Converter Installed Position. ] Exhaust Door Control Unit With Reduction Catalytic Converter Assembly Overview.

=> [ Clamps, Installed Position on Exhaust System ] Clamps, Installed Position on Exhaust System
