Relay and Fuse Panel B, through 05.2009

Relay and Fuse Panel B, through 05.2009

Removing






- With ignition switched off, disconnect battery ground wire. Refer to => [ Battery in Engine Compartment, Disconnecting and Connecting ] Battery In Engine Compartment, Disconnecting and Connecting.

Vehicles with the old version E-box

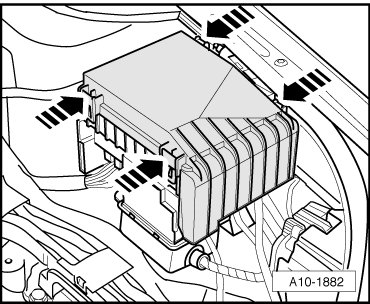

- Press the retaining clips in - direction of arrow - and remove the E-box cover.

Vehicles with the new version E-box






- Slide both latches in - direction of arrow - and remove the E-box cover.

All Vehicles






- When re-installing, identify the wires on the threaded connectors.

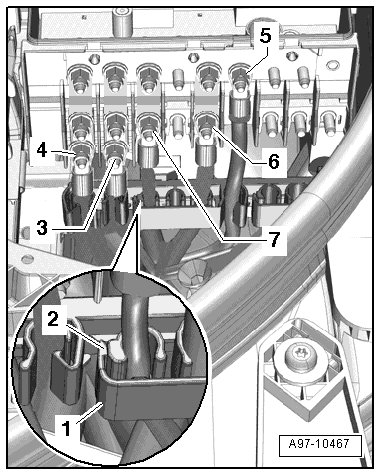

- Release the retaining clips - 2 - and move the wiring harness - 1 - to the side - arrow -.

- Remove the nuts - 3 through 7 - and disconnect the wires from the retainers.

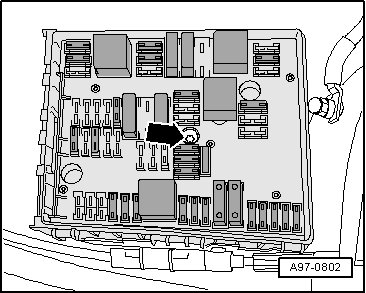

- Remove the bolts - arrow -.






- Remove the relay and fuse panel B (SB) from the engine compartment E-box.

Installing

Install in reverse order of removal, observing the following:

- Mount the relay and fuse panel B on the engine compartment E-box. Tighten the central bolt; when doing so the connectors will be pushed up.

- Connect and tighten the wires according to the markings on the engine compartment E-box main fuse panel.






• Tighten the nuts - 6 - and - 7 - to 4.5 Nm.

• Tighten the nuts - 3, 4 and 5 - to 6 Nm.

- Connect battery. Required actions => Battery In Engine Compartment, Disconnecting and Connecting.

Tightening Specifications
