Fuse Panel C, Driver Side

Fuse Panel C, Driver Side

Special tools, testers and auxiliary items required

• Special hook (3370)

Removing

- With ignition switched off, disconnect ground cable at battery.

• Battery in engine compartment, refer to => [ Battery in Engine Compartment, Disconnecting and Connecting ] Battery In Engine Compartment, Disconnecting and Connecting

• Battery in luggage compartment, refer to => [ Battery in Luggage Compartment, Disconnecting and Connecting ] Battery In Luggage Compartment, Disconnecting and Connecting

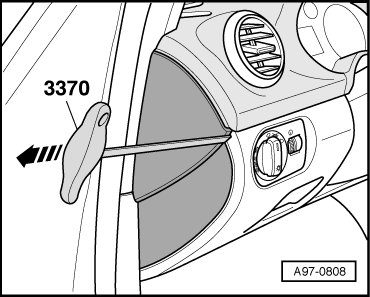

- Pry off the left cover on the instrument panel using (3370) - arrow -.






- Remove driver's storage compartment.

- Remove the screws - arrows - for fuse panel C (SC) - item 1 - on the driver side instrument panel.






- Remove fuse panel from central tube for instrument panel.

- Release cover for fuse panel - arrows -.






- Remove fuses on fuse panel.

- Unclip socket and remove connectors from fuse panel.

• Check the exact assignment for fuse panel in the current wiring diagram.

Installing






Install in reverse order of removal, noting the following:

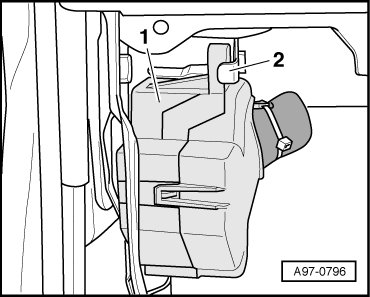

- Make sure the fuse panel - 1 - sits at the top of the central tube behind the mount - 2 -.

- Install driver's storage compartment.

- Connect battery.

• Battery in engine compartment => Battery In Engine Compartment, Disconnecting and Connecting

• Battery in luggage compartment => Battery In Luggage Compartment, Disconnecting and Connecting

Tightening Specifications
