Filter

Filter

Removing

- Remove the engine cover - arrows -.

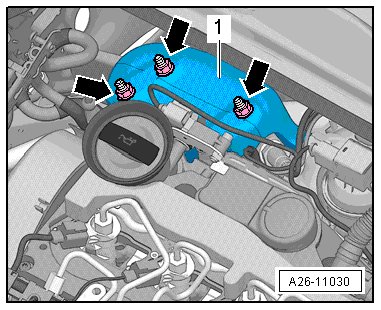

- Remove the nuts - arrows - and then remove the heat shield - 1 -.





- Remove the nut - 3 -.





• The nut - 3 - is accessible from above.

- Remove the noise insulation - 1 -.





- Remove the clamp - 2 - and the bolt - 1 - and then remove the filter.





Installing

• Tightening specifications, refer to => [ EGR with EGR Cooling System Assembly Overview ] EGR With EGR Cooling System Assembly Overview.

Installation is performed in reverse order of removal. Refer to => [ Clamps, Installed Position on Exhaust System ] Clamps, Installed Position on Exhaust System

- Install the noise insulation.
