Engine, Installing

Engine, Installing

Tightening Specifications

• Tightening specifications only apply to lightly greased, oiled, phosphated or blackened nuts and bolts.

• Additional lubricants, such as engine or transmission oil are permissible, although lubricants containing graphite are not.

• Do not use any degreased parts.

• Tolerance for tightening specifications ±15%.

Tightening specifications, refer to => [ Subframe Assembly Overview ] Subframe Assembly Overview.

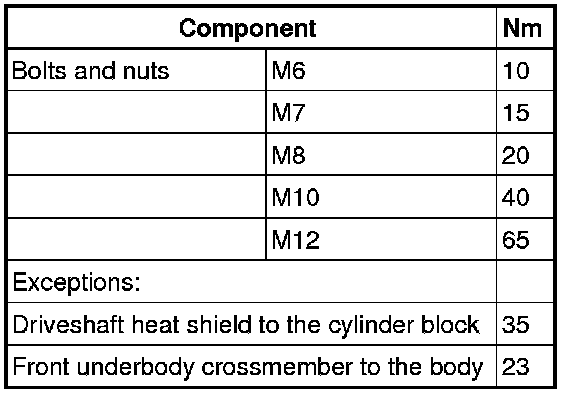

Additional tightening specifications






Mounting, S-tronic transmission to engine










Installation is in reverse order of removal, note the following:

• The engine/transmission subassembly is attached to the engine bracket (T10012).

• Replace bolts which have been tightened to an additional torque.

• Replace self-locking nuts and bolts as well as sealing rings, seals and O-rings.

• The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

• Secure all hose connections with hose clamps appropriate for the model. Refer to the electronic parts catalog ETKA.

• In order to be able to securely mount the air guide hoses on their connectors, spray the bolts on the previously used clamps with a rust remover.

• During installation, all cable ties must be installed at the same location.

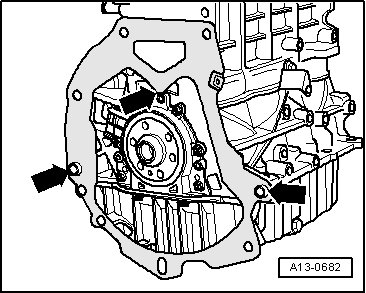

- Make sure the intermediate plate is engaged on the sealing flange and slide onto the guide sleeves - arrows -.





- If the alignment sleeves - A - for centering the engine and transmission are missing inside the cylinder block, then install the sleeves.

- If a needle bearing is installed in crankshaft, remove needle bearing. Refer to => [ Needle Bearing on Crankshaft ] Needle Bearing on Crankshaft.

- Lightly lubricate transmission input shaft splines with clutch disc connection lubricating grease. Refer to the electronic parts catalog ETKA.

- Check clutch drive plate centering.

- If the alignment sleeves - A - for centering the engine and transmission are missing inside the cylinder block, then install the sleeves.





- If no needle bearing is installed in crankshaft, install needle bearing. Refer to => [ Needle Bearing on Crankshaft ] Needle Bearing on Crankshaft.

- Tighten the transmission to the engine.

- Guide the engine/transmission subassembly into the body.

- Install the bolts - arrows - for the subframe mount on the engine side first by hand all the way.





- Install the bolts - arrows - for the subframe mount on the transmission side first by hand all the way.





• The bolts are first tightened to final torque after the subframe mount has been adjusted. Refer to => [ Subframe Mount, Adjusting ] Adjustments.

- Remove engine bracket (T10012) from engine.

- Install the starter.

- Install the EGR cooler pump (V400). Refer to => [ Coolant Pipes, Coolant Temperature Sensors and Coolant Pump Assembly Overview ] Coolant Pipes, Coolant Temperature Sensors and Coolant Pump Assembly Overview.

- Install the air guide pipe. Refer to => [ Charge Air Cooler Assembly Overview ] Charge Air Cooler Assembly Overview.

- Install and adjusts the selector lever cable.

- Install the particulate filter. Refer to => [ Particulate Filter ] Particulate Filter.

- Install the drive axles, the transverse links and the coupling rods.

- Install A/C compressor.

- Install the ribbed belt.

• => [ Ribbed Belt, Vehicles with Tensioning Damper and A/C Compressor ] Ribbed Belt, Vehicles With Tensioning Damper and A/C Compressor

• => [ Ribbed Belt, Vehicles with Tensioning Roller and A/C Compressor ] Ribbed Belt, Vehicles With Tensioning Roller and A/C Compressor

• => [ Ribbed Belt, Vehicles without A/C Compressor ] Ribbed Belt, Vehicles Without A/C Compressor

- Install the front section of the wheel housing liner.

- Install the front wheels.

- Install Engine Control Module (ECM).

- Install the radiator. Refer to => [ Radiator ] Radiator.

- Connect the coolant hoses to the heat exchanger => [ Connect the Coolant Hose with the Connector Coupling ] Radiator and Coolant Fan Assembly Overview.

- Install the auxiliary fuel pump (V393).

- Install exhaust pressure sensor 1 (G450).

- Install the filler tube and the windshield wiper fluid reservoir filler tube.

- Install the air guide hose with the connector coupling => [ Install the Air Guide Hoses
with the Coupling ] Charge Air Cooler Assembly Overview.

- Adjust subframe mount. Refer to => [ Subframe Mount, Adjusting ] Adjustments.

- Electrical connections and routing.

- Install the battery tray and the battery.

- Install and adjust the windshield wiper arms.

- Install air filter housing.

- Check oil level.


Risk of destroying control modules with excess voltage.

• Do not use a battery charger for starting assistance!

- Fill with coolant => [ Filling ] Procedures.

• Only reuse drained coolant if cylinder head or engine block was not replaced.

• Dirty coolant may not be used again.

- Install the noise insulation.
