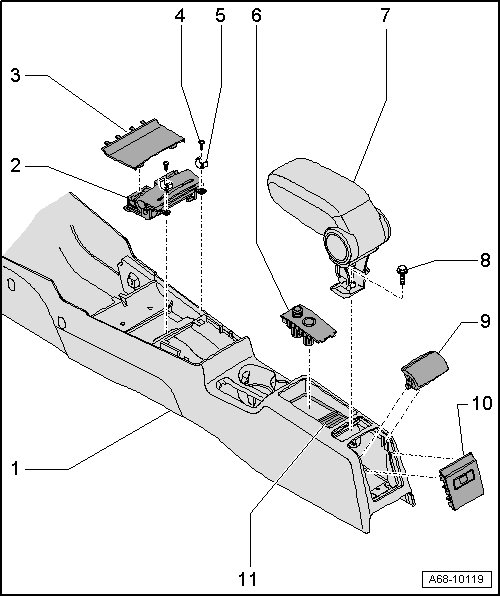

Center Console Trim Component Overview

Center Console Trim Component Overview






1 Center Console

• Removing and Installing, refer to => [ Center Console ] Center Console

2 Front Ashtray

• Removing and installing, refer to => [ Storage Compartments, Version 1 with Smoking Package ] Storage Compartments, Version 1 With Smoking Package; => [ Storage Compartments, Version 2 with Smoking Package ] Storage Compartments, Version 2 With Smoking Package

3 Storage Compartment Cover

• Only installed in conjunction with front ashtray.

• Removing and Installing, refer to => [ Storage Compartments, Version 1 with Smoking Package ] Storage Compartments, Version 1 With Smoking Package

4 Bolt

3.5 Nm

5 Retaining Clip

6 Mount with Cigarette Lighter and 12-volt Socket

• Unit is not disassembled

• Removing and Installing, refer to => [ Cigarette Lighter and 12V Outlet Mount ] Cigarette Lighter and 12V Outlet Mount

7 Front Center Armrest

• Removing and Installing, refer to => [ Center Armrest ] Center Armrest

• Disassembling and assembling, refer to => [ Center Armrest ] Overhaul

8 Bolt

14 Nm

9 Rear Ashtray

• Removing and Installing, refer to => [ Rear Ashtray ] Rear Ashtray

10 Rear Central Locking Switch Mount

• Removing and Installing, refer to => [ Rear Central Locking Switch Mount ] Rear Central Locking Switch Mount

11 Masking Panel Compartment

• Removing and Installing, refer to => [ Masking Panel Compartment ] Masking Panel Compartment
