Front Suspension

Diagonal Braces

Special tools, testers and auxiliary items required

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Torque Wrench 40-200 Nm (V.A.G 1332)

Removing

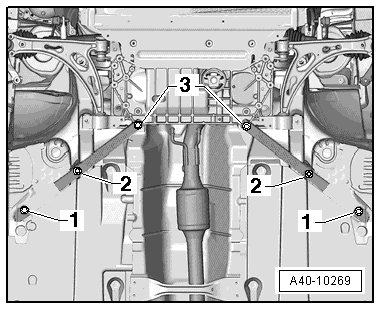

- Remove bolts - 1 through 3 - and remove diagonal braces.

Installing

Install in reverse order of removal. Note the following:

• The contact surfaces on the diagonal braces must have any wax on them.

Tightening specifications, refer to => [ Subframe, Diagonal Brace, Ball Joint, Stabilizer Bar, Transverse Link, Bracket and Vehicle Level Sensor Overview ] Subframe, Diagonal Brace, Ball Joint, Stabilizer Bar, Transverse Link, Bracket and Vehicle Level Sensor Overview.
