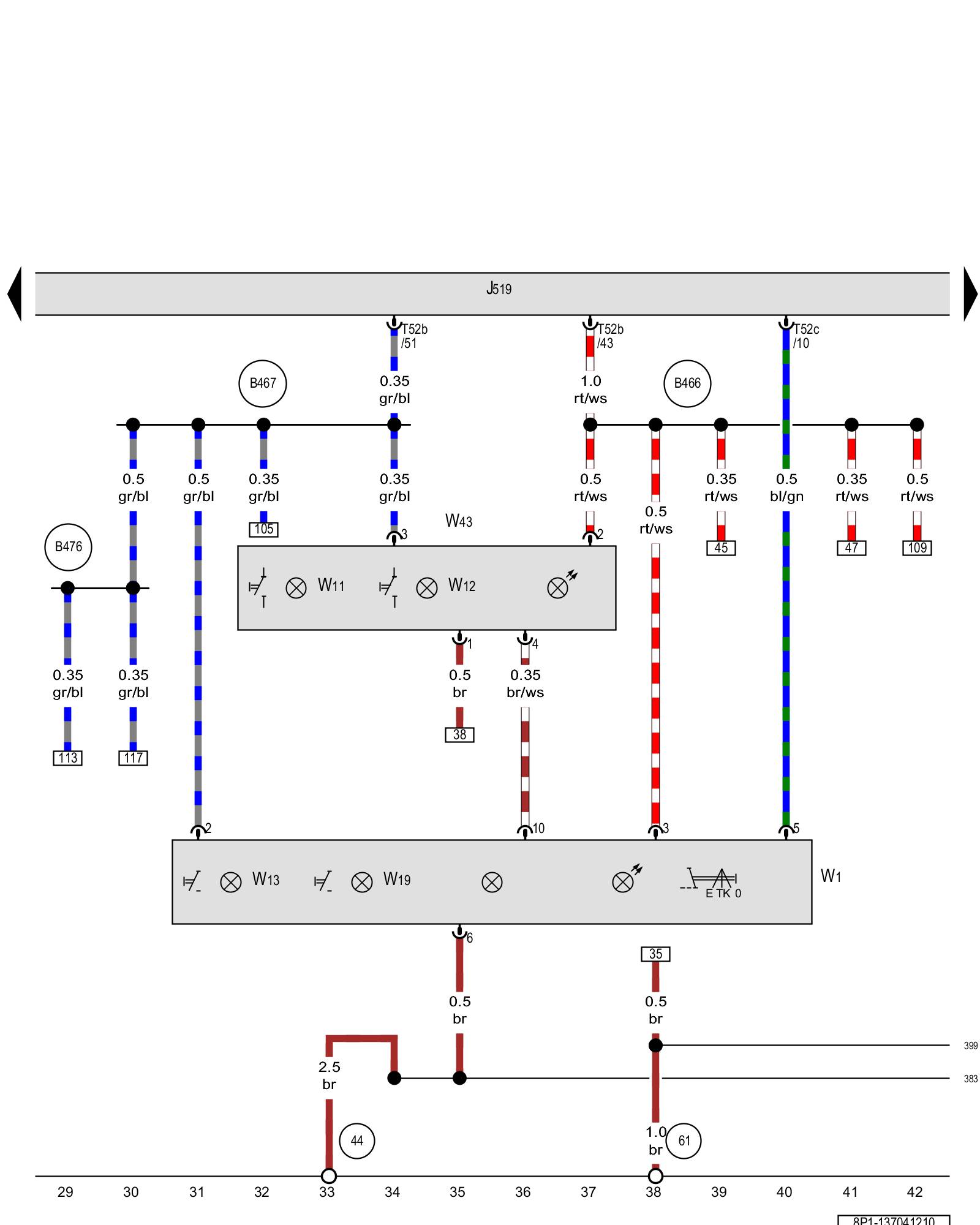

Diagram 137/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Front interior lamp, Rear interior lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

T52b - 52-pin connector

T52c - 52-pin connector

W1 - Front interior lamp

W11 - Left rear reading lamp

W12 - Right rear reading lamp

W13 - Front passenger reading lamp

W19 - Driver reading lamp

W43 - Rear interior lamp

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(383) - Ground connection 18 (in main wiring harness)

(399) - Ground connection 34 (in main wiring harness)

(B466) - Connection 2 (in main wiring harness)

(B467) - Connection 3 (in main wiring harness)

(B476) - Connection 12 (in main wiring harness)
