System Specifications

Capacities

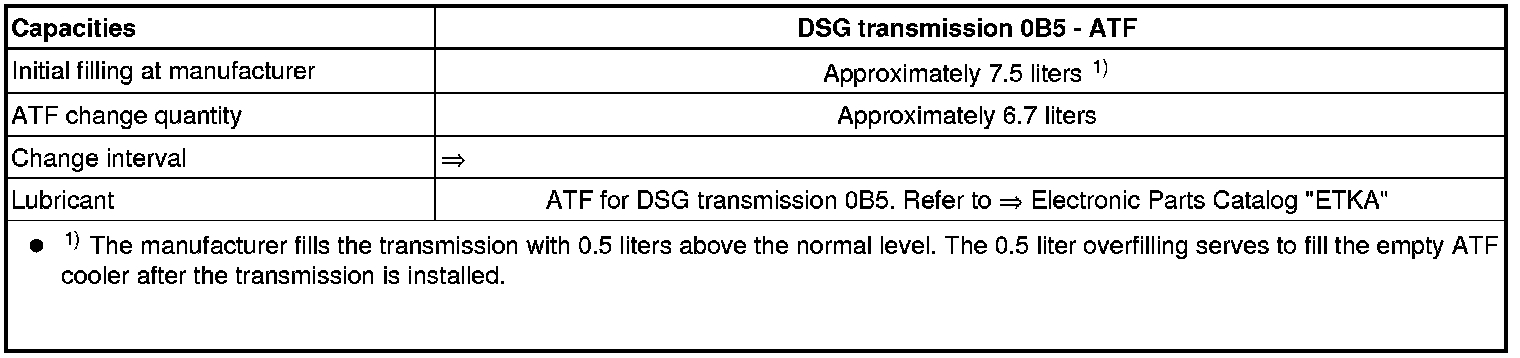

Oil System - ATF







There is a risk that the transmission could malfunction or fail.

• Only the ATF available as a replacement part may be used in the DSG transmission 0B5.

Refer to => [ ATF, Checking Level and Correcting ] .

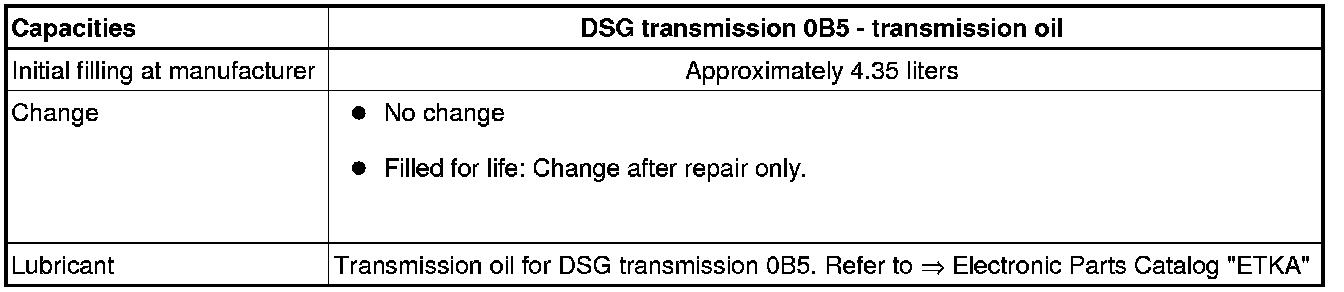

Oil System - Transmission Oil






Refer to => [ Front Final Drive and Transfer Case, Checking Transmission Oil Level and Filling ] Front Final Drive and Transfer Case, Checking Transmission Oil Level and Filling.
