Steering Column Switch Module Lower Trim

Steering Column Switch Module Lower Trim

Removing





- Remove the steering column switch module upper trim. Refer to => [ Steering Column Switch Module Upper Trim ] Steering Column Switch Module Upper Trim.

- Rotate the steering wheel 90° out of the straight position.

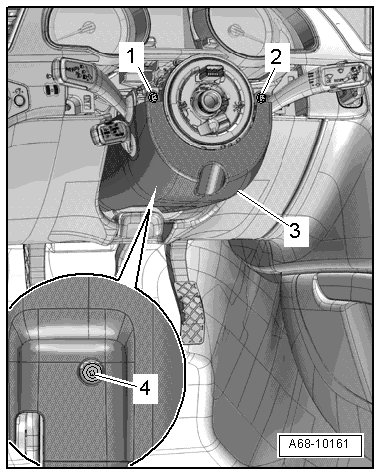

- Remove the bolts - 1 - and - 2 -.

• If bolts - 1 - and - 2 - are not accessible, steering wheel must be removed for further work.

- Remove the bolt - 4 - and the steering column switch module lower trim - 3 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Steering Column Switch Module Trim Assembly Overview ] Steering Column Switch Module Trim Assembly Overview.
