AdBlue(R) Transfer Pump

AdBlue(R) Transfer Pump

Special tools, testers and auxiliary items required

• Hose Clamps Up to 225 mm Dia. (3094)

• Engine Bung Set (VAS 6122)

Removing

Follow all safety precautions => [ Observe the following when working on the reducing agent metering system: ] Safety Precautions.

Follow the guidelines for cleanliness. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

Danger due to reducing agent leaking out.

• To prevent large amounts of reducing agent when opening the metering line, wait for the recirculation process to complete. Refer to Safety Precautions.

- Remove the reducing agent passive tank. Refer to => [ AdBlue(R) Passive Tank ] AdBlue(R) Passive Tank.

• Place a clean cloth under the separating location to catch any reducing agent that may leak out.

• Seal off all open lines and connections with clean plugs.

The reducing agent can cause skin irritation.

• Avoid contact with skin and eyes! Always wear protective gloves and safety glasses.

• If reducing agent should get on your skin, wash it off immediately with soap and water.

• If reducing agent gets in your eye, rinse the eye for several minutes with water.

• Never inhale or swallow the reducing agent!

• Should you swallow any reducing agent, rinse your mouth, drink plenty of water and contact a doctor immediately.

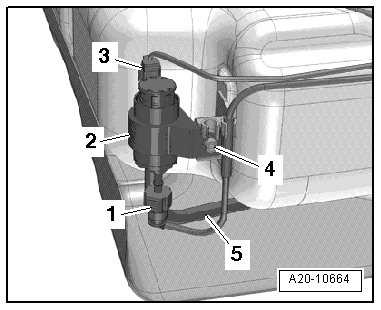

- Remove the transfer line - 1 - by pressing the release button.






- Clamp off the hose - 5 - with the (3094).

- Carefully remove the hose from the connection on the reducing agent transfer pump (V436).

- Disconnect the connector - 3 -.

- Remove the bolt - 4 - and remove the reducing agent transfer pump and rubber bracket - 2 -.

Installing

Install in reverse order of removal. Note the following:

• For the correct tightening specifications, refer to => [ AdBlue(R) Active Tank and Attachments Overview ] AdBlue(R) Active Tank and Attachments Overview.

- Adapting adaptation value after draining AdBlue(R) or replacing components. Refer to => [ Adapting Adaptation Value after Draining AdBlue(R) or Replacing Components ] Testing and Inspection.
