Removal and Replacement

Selector Lever Shaft Seal

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

Procedure

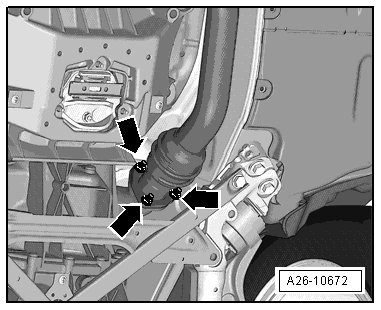

- Move the nuts - arrows - and front muffler.





- Remove the ATF oil pan. Refer to => [ Automatic Transmission Fluid Oil Pan ] Service and Repair.

- Remove the ATF filter. Refer to => [ ATF Filter ] Service and Repair.

- Remove the Mechatronic unit. Refer to => [ Mechatronic Unit ] Mechatronic Unit.

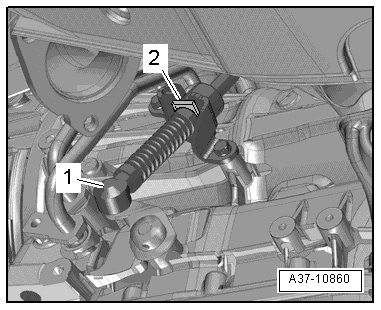

- Remove the ball socket - 1 - on the selector lever cable from the selector shaft lever using the (80 - 200).





• Do not bend or kink the selector lever cable.

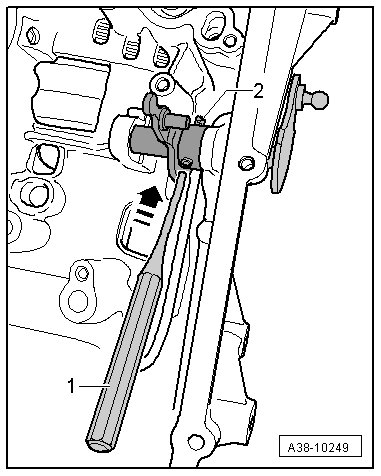

- Remove the spring pin - 2 - on the shaft for the selector lever using a pin punch - 1 -.

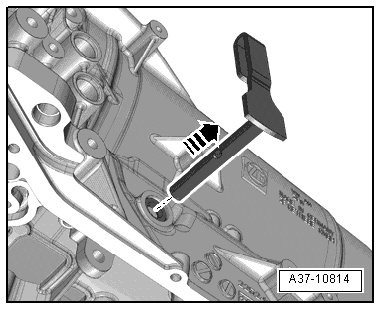

- Remove the selector lever and shaft - arrow -.





- Pry out the shaft seal using a small screwdriver.

- Apply ATF to the circumference and the space between the sealing lips of the new shaft seal.

• Installed position: Open side of shaft seal faces transmission.

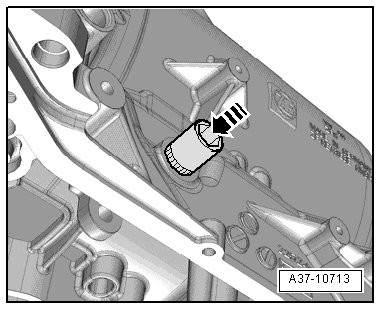

- Mount the shaft seal on the transmission housing and push it in all the way using a suitable socket - arrow -.





- Install the selector lever and shaft.

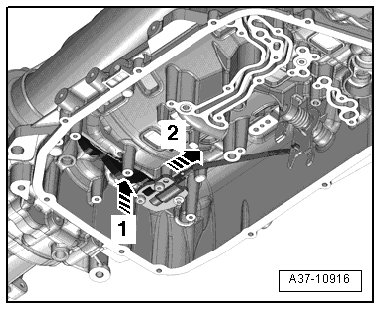

• If the actuator rod for the locking latch moves too far to the rear, then it can be pulled forward - arrow 2 - while pushing the locking latch at the same time - arrow 1 -.

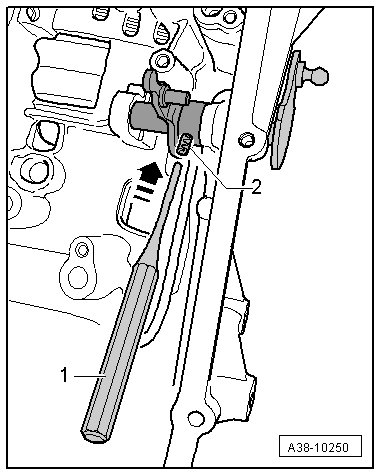

- Install the spring pin - 2 - flush on the shaft for the selector lever using a pin punch - 1 -.





- Install Mechatronic unit. Refer to => [ Mechatronic Unit ] Mechatronic Unit.

- Install the ATF filter. Refer to => [ ATF Filter ] Service and Repair.

- Install the ATF pan. Refer to => [ Automatic Transmission Fluid Oil Pan ] Service and Repair.

- Install the front muffler.

- Fill the ATF. Refer to => [ ATF, Draining or Filling after Repair ] ATF, Draining or Filling After Repair.
