Mechatronic Unit

Mechatronic Unit

Special tools, testers and auxiliary items required

• Puller (T10271)

• Assembly Pin (T40199)

Removing

• Transmission installed.

• Clean working conditions for the automatic transmission. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

• General repair instructions, refer to => [ Repair Information ] Repair Information.

• Always replace the Mechatronic unit if it is dirty or faulty.


There is a risk of damaging the transmission.

• Do not start the engine if there is no ATF in the transmission and if the Mechatronic is removed.

- Move the selector lever into P.

- Turn off the ignition and remove the key.

- Remove the ATF oil pan. Refer to => [ Automatic Transmission Fluid Oil Pan ] Service and Repair.

- Remove the ATF filter. Refer to => [ ATF Filter ] Service and Repair.








There is a risk of destroying the transmission control module (Mechatronic) with static discharge.

• Always discharge the static electricity. Do this by touching a grounded object, for example vehicle ground, the vehicle or the hoist.

• Do not touch contacts in transmission connector with hands.

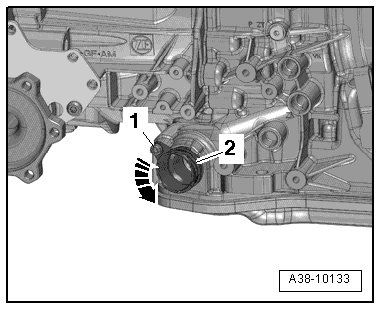

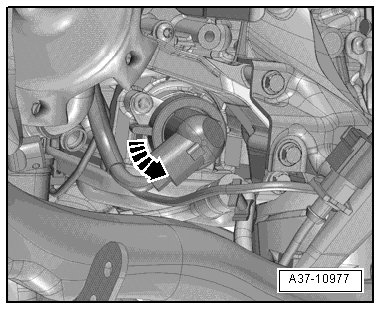

- Disconnect the connector on transmission by rotating screw connections counter-clockwise - arrow -.

- Remove the bolt - 1 -.

- Turn the connector housing - 2 - counter-clockwise - arrow - and remove it.

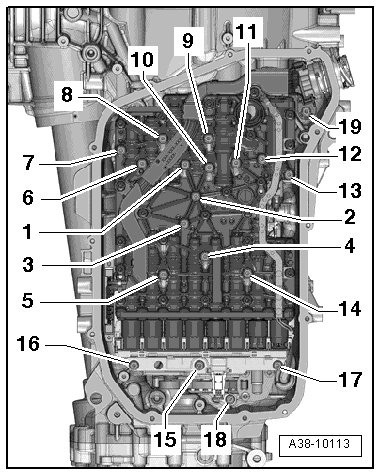

- Remove the bolts in the following sequence: - 19 to 1 -.






Risk of causing damage to the Mechatronic.

• Only the bolts with a T40 TORX(R) bolt head may be loosened.

• If other bolts are loosened, this may affect the function of the Mechatronic unit or it may come apart.

- Remove the Mechatronic from the transmission.


Danger of damaging the sensor on the back side of the Mechatronic.

• Lay the Mechatronic with the bolt head side facing down only.

Installing

• Tightening specifications, refer to => [ ATF Pan, ATF Strainer and Mechatronic Overview ] Description and Operation.

• Replace the Mechatronic O-rings and bolts.

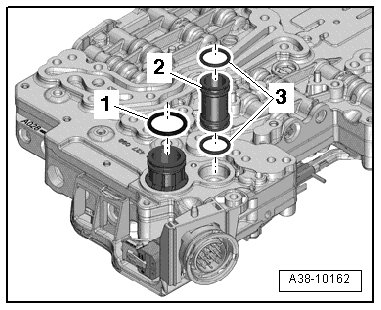

- Install new O-rings - 1 - and - 3 - into the grooves in the oil pipes.





- Insert the ATF pipe - 2 - into the Mechatronic.

- Check the oil pipes for damage and make sure they fit securely inside the Mechatronic.

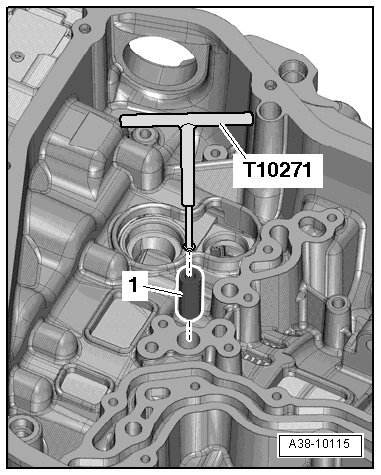

- Remove the sealing sleeve using the (T10271) and install a new sleeve.





- Install the four (T40199) hand-tight, as illustrated.





• The (T40199) prevent the Mechatronic from tilting when it is being installed. Also, the oil pipes on the back of the Mechatronic will not get damaged.





• The spring clip on the back of the Mechatronic prevents the Mechatronic from being mounted flush on the transmission housing.

• It is recommended to have a second technician help when installing the Mechatronic.

- Carefully mount the Mechatronic on the transmission housing.

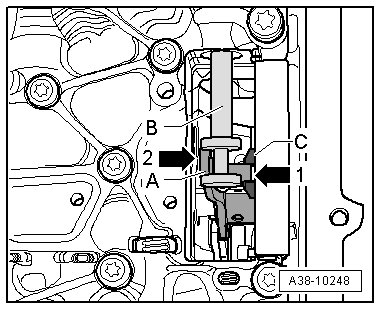

• The selector lever - A - must fit into the bracket - C - for the multifunction transmission range switch (F125) - arrow 1 -, move the bracket if necessary - C -.





• The selector lever - A - must fit into the selector slide - B - - arrow 2 -. Move the selector slide - B - if necessary.

- Install the bolts - 1 through 4 - by hand until the bolt heads make contact.





- Remove the four (T40199).

- Tighten the bolts on the Mechatronic in the specified tightening sequence=> [ Mechatronic, Tightening Specification
and Sequence ] Description and Operation.

Install in reverse order, paying attention to the following:


There is a risk of destroying the transmission control module (Mechatronic) with static discharge.

• Always discharge the static electricity. Do this by touching a grounded object, for example vehicle ground, the vehicle or the hoist.

• Do not touch contacts in transmission connector with hands.

- Make sure the connector locks and is secure.

- Install the ATF filter. Refer to => [ ATF Filter ] Service and Repair.

- Install the ATF pan. Refer to => [ Automatic Transmission Fluid Oil Pan ] Service and Repair.

- Fill the ATF. Refer to => [ ATF, Draining or Filling after Repair ] ATF, Draining or Filling After Repair.
