ATF Pipes

ATF Pipes

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)

• Oil Collecting and Extracting Device (V.A.G 1782)

Removing

- Remove the noise insulation - 1 - and - 2 -.





- Place the (V.A.G 1782) under the separating point on the ATF pipes.

• Before removal, mark the ATF pipes in relation to each other so they are not switched.

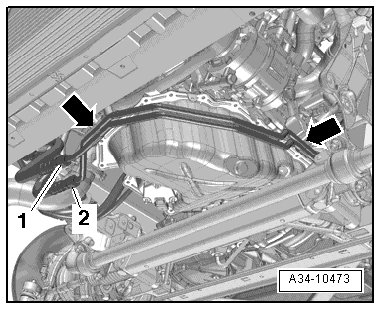

- Disconnect the ATF return pipe - 1 - and the ATF supply pipe - 2 -.





- Remove the bolts - arrows - from the ATF pipes on the engine.

• Place the (V.A.G 1782) or catch tray under the transmission to catch any leaking ATF.

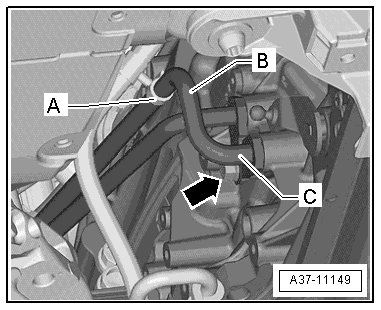

- Remove the clip - A - holding the Mechatronic wiring harness from the ATF pipe - B -.

- Remove the bolt - arrow -. Then pull the ATF pipes - B - and - C - off the transmission and tie them up.

- Seal any open lines and connections with a clean plug from the engine plug set (VAS 6122).

- Remove the ATF pipes.

Installing

Install in reverse order, paying attention to the following:

• Tightening specifications, refer to => [ ATF Cooler and ATF Pipes Overview ] Description and Operation.

• Replace O-rings.

- Check the ATF level. Refer to => [ ATF, Checking Level and Correcting ] ATF, Checking Level and Correcting.

- Install the noise insulation - 1 - and - 2 -.
