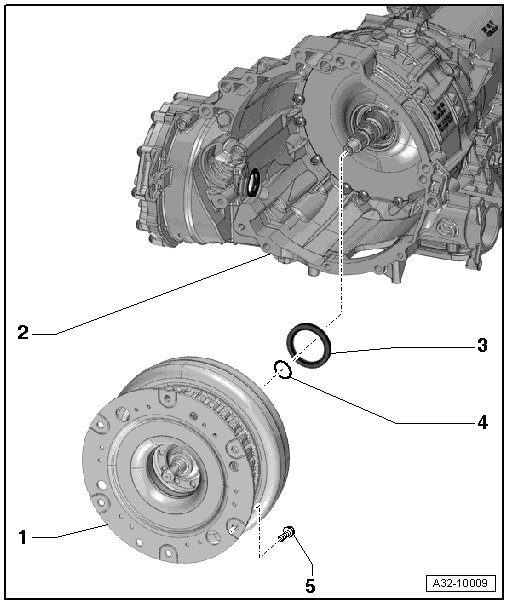

Torque Converter Overview

Torque Converter Overview






1 Torque Converter

• There are different torque converters. Use the code letters to designate them.

• Allocation torque converter to transmission, refer to => [ Code Letters, Transmission Allocations, Ratios and Equipment ] Code Letters, Transmission Allocations, Ratios and Equipment.

• => [ Torque Converter ] Torque Converter

2 Transmission Housing

3 Shaft Seal

• For the torque converter, refer to => [ Torque Converter Shaft Seal ] Torque Converter Shaft Seal

4 O-ring

• Removing and installing

5 Bolt

• Quantity: 3

• Tightening specification and sequence, refer to => [ Transmission, Installing ] Transmission, Installing

• Removing and installing
