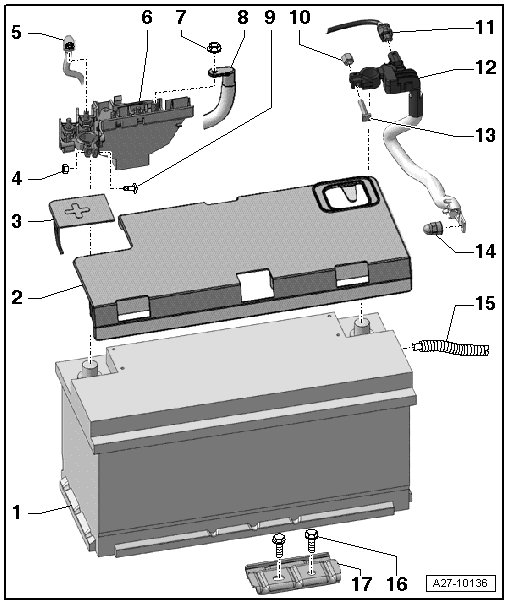

Battery Overview

Battery Overview






1 Battery

• In the luggage compartment of the spare wheel well

• Removing and installing, refer to => [ Battery ] Battery

2 Negative Terminal Cover

• Varies by equipment level

• Allocation, refer to the Electronic Parts Catalog (ETKA)

3 Positive Terminal Cover

4 Nut

• 5 Nm

5 Electrical Wire

• For the relay/fuse panel, under the instrument panel on the left side

• Tightening specification, refer to => [ Tightening Specifications for the Fuse Panel A ] Engine Compartment E-Box, Wire Junction, Fuse Holder and Battery Overview

6 Fuse Panel A (SA)

• Disconnecting and connecting, refer to => [ Battery ] Battery

• Removing and installing, refer to => [ Fuse Panel A in Luggage Compartment ] Fuse Panel A In Luggage Compartment

7 Nut

• Tightening specification, refer to => [ Tightening Specifications for the Fuse Panel A ] Engine Compartment E-Box, Wire Junction, Fuse Holder and Battery Overview

8 Positive Cable to the Engine

9 Screw

10 Nut

• 5 Nm

11 Electrical Wire

• For the battery monitoring control module (J367)

• Follow the sequence when connecting the ground cable. Battery, Disconnecting and Connecting

12 Ground Wire with Battery Monitoring Control Module (J367)

• Disconnecting and connecting, refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting

• Removing and installing, refer to => [ Battery Monitoring Control Module ] Battery Monitoring Control Module

13 Screw

14 Nut

• 18 Nm

15 Central Venting System Hose

16 Screw

• Quantity: 2

• 18 Nm

17 Retaining Bracket
