Seat Height Adjustment Lever

Seat Height Adjustment Lever

• Removal and installation are same for right and left.

Removing






- Move the seat all the way forward.

- Move the seat to the highest position, and then press the lever down once.

- Remove tunnel side trim panel:

• Standard seat and Sport seat (manual). Refer to => [ Trim, Sill Side ] Trim, Sill Side.

• Front Folding Seat, Passenger Seat. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

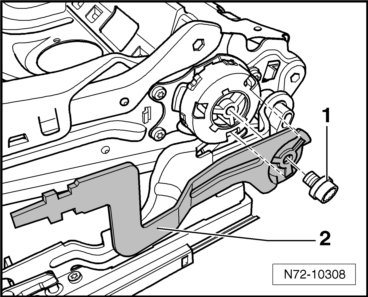

- Remove the bolt - 1 -.

- Remove the lever - 2 - from the seat height adjuster.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Seat Height Adjuster Overview ] Seat Height Adjuster Overview.
