Seat Height Adjuster

Seat Height Adjuster

Removing






- Move the seat all the way forward.

- Move the seat to the highest position, and then press the lever down once.

- Remove tunnel side trim panel:

• Standard seat and Sport seat (manual). Refer to => [ Trim, Sill Side ] Trim, Sill Side.

• Front Folding Seat, Passenger Seat. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

- Remove the seat height adjustment lever. Refer to => [ Seat Height Adjustment Lever ] Seat Height Adjustment Lever.

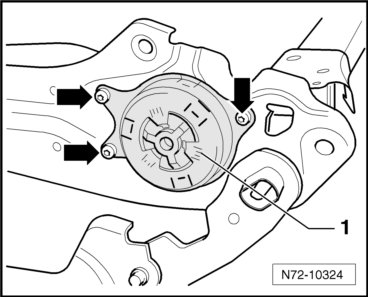

- Remove the bolts - arrows -.

- Remove the seat height adjuster - 1 - from the seat frame.

Installation

Installation is reverse of removal, but note the following:

- A second technician must push the seat downward over the seat backrest when installing the seat height adjuster into the seat pan frame.

Tightening specifications, refer to => [ Seat Height Adjuster Overview ] Seat Height Adjuster Overview.
