Backrest Cover and Cushion Overview

Backrest Cover and Cushion Overview

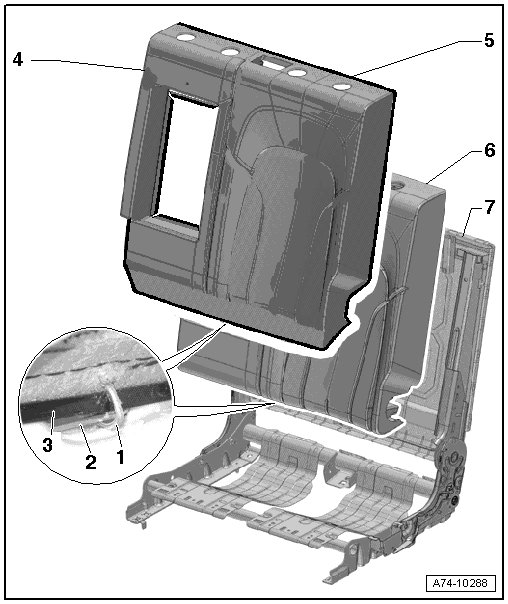

• The overview is based on the two thirds left rear seat backrest and one third right rear seat backrest.






1 Cushion Clamp

• For securing cover to upholstery.

• Always replace if removed.

• Install in same location as before removal.

2 Wire

• In foam in upholstery.

• For securing cover to upholstery.

3 Contour Strip

• Sewn into cover.

• For securing cover to upholstery.

4 Cover

• Cover with upholstery, removing and installing. Refer to => [ Backrest Cover and Upholstery ] Backrest Cover and Upholstery.

• Cover, separating from cushion and connecting. Refer to => [ Cover, Separating From Backrest Cushion ] Cover, Separating From Backrest Cushion.

5 Retaining Strip

• Sewn into cover.

• For attaching the cover to the backrest frame.

6 Cushion

• Cover with upholstery, removing and installing. Refer to => [ Backrest Cover and Upholstery ] Backrest Cover and Upholstery.

• Cover, separating from cushion and connecting. Refer to => [ Cover, Separating From Backrest Cushion ] Cover, Separating From Backrest Cushion.

7 Backrest Frame
