Transmission Shift Lever and Relay Lever Assembly Overview

Transmission Shift Lever and Relay Lever Assembly Overview

• Grease bearing areas and slide surfaces with Grease (G 000 450 02).

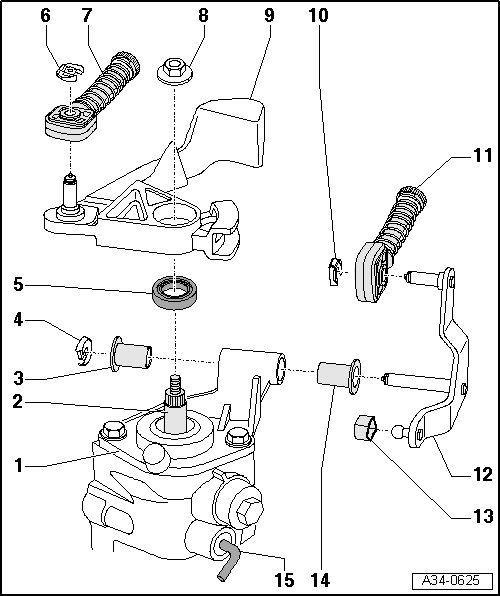

1 Selector mechanism cover

• Removing and installing, refer to => [ Input Shaft, Output Shaft, Differential and Shift Rods Assembly Overview ]

2 Selector shaft

• Removing and installing, refer to => [ Input Shaft, Output Shaft, Differential and Shift Rods Assembly Overview ]

3 Bushing

• discontinued from 05.2007 on the plastic relay lever

4 Retaining washer

• Removing, refer to => [ Removing the Relay Lever Clip ]

• discontinued from 05.2007 on the plastic relay lever

5 Oil seal

• Replace, refer to => [ Selector Shaft Seal ] Selector Shaft Seal

6 Retaining washer

7 Shift cable

8 Nut

• 23 Nm

• Self-locking

• Replace

9 Transmission shift lever

• Only possible to install in one position

• Installing, refer to => [ Installing the Transmission Shift Lever ]

• Installation location, refer to => [ Installation Position, Transmission Shift Lever/Relay
Lever ]

• starting in 06.2006 smaller bolt diameter for the cable retainer, refer to => [ Starting in 02.2006, Smaller Bolt Diameter
for the Shift Cable Retainer ] Shift Cable and Selector Cable Assembly Overview

10 Retaining washer

• Discontinued from 05.2007 on the plastic relay lever

11 Selector cable

12 Selector relay lever

• Can be made of plastic or metal

• Plastic relay lever from 05.2007, refer to => [ Plastic Relay Lever ] Plastic Relay Lever

13 Slide shoe

14 Bushing

15 Lock elbow

• For adjustment of shift mechanism, refer to => [ Shift Mechanism, Adjusting ] Adjustments

Installing the Transmission Shift Lever

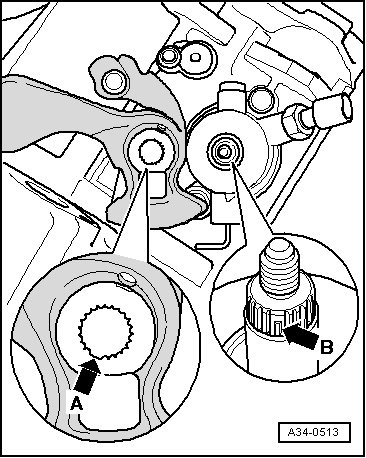

- When positioning the transmission shift lever, make sure the gap - arrow A - is placed over the missing selector shaft teeth - arrow B -.

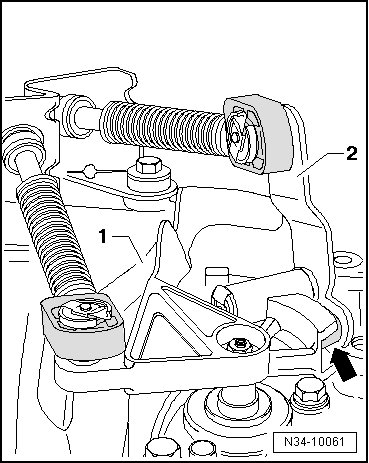

Installation Position, Transmission Shift Lever/Relay Lever





1 Transmission shift lever
2 The relay lever engages into the guide rail of the transmission selector lever, via the guide shoe - arrow -.

Removing the Relay Lever Clip

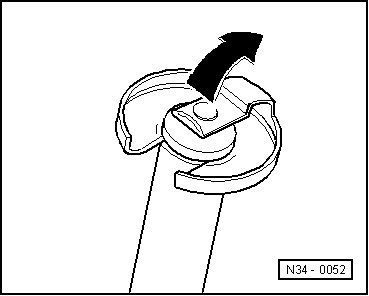

- Lift on the circlip - arrow -.
