Torque Converter: Description and Operation

Torque Converter Overview

Danger of causing damage to the torque converter or the Automatic Transmission Fluid (ATF) pump.

• Check the installed dimension of the torque converter before installing the transmission. Refer to => [ Installed Dimension ] Removal and Replacement.

Danger of leaks on the torque converter seal.

• The covers - items 3 through 8 - prevent dust and dirt from getting into the torque converter bellhousing. Install the covers if necessary.

• Observe general repair notes. Refer to => [ General Repair Information ] General Repair Information.

• Rules of cleanliness for working on automatic transmissions. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

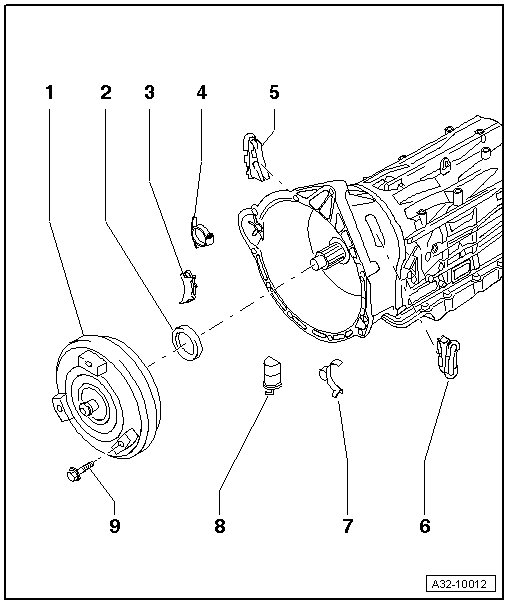

1 - Torque Converter

• Draining, => [ Torque Converter, Draining ] Torque Converter, Draining

• Checking, => [ Torque Converter, Checking ] Torque Converter, Checking

• Installing, => [ Torque Converter, Installing ] Removal and Replacement

• Check the installed dimension for the torque converter before installing the transmission. Refer to => [ Installed Dimension ] Removal and Replacement.

2 - Shaft Seal

• For the torque converter.

• Removing and installing, refer to => [ Torque Converter Shaft Seal ] Torque Converter Shaft Seal.

3 through 8 - Covers

• When installing the transmission, install in the openings provided.

• Prevents dust and dirt from getting into the torque converter bellhousing and the torque converter seal from leaking.

9 - Bolt

• 85 Nm

• For securing the drive plate to the torque converter.
