Procedure 2

Selector Lever

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

Removing





- Remove the rear noise insulation - 2 -.

Vehicles with a 4.2L Engine





- Remove the heat shield bolts - arrows - and shield for the selector lever cable.

Vehicles with a 3.0L Engine





- Remove the particulate filter.

- Remove the bolts - 1, 3 and 4 - from the heat shield.





- Turn heat shield slightly to side.

• Ignore - 2 -.

Continuation for All





- Remove the ball head - 2 - on the selector lever cable from the selector lever shaft using (80 - 200).

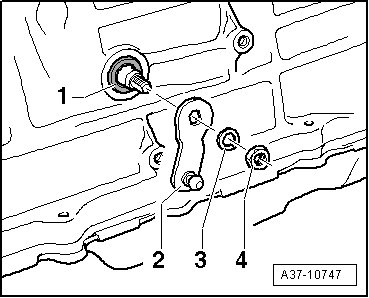

- Remove the nut - 4 - and the selector lever - 2 - with the washer - 3 -.





Installing

Tightening specifications, refer to one of the following:

=> [ Selector Lever and Multifunction Transmission Range Switch Overview ] Description and Operation.

=> [ Selector Lever Cable Overview ] Description and Operation.

- Install the selector lever - 2 - on the selector shaft.

- Install the washer - 3 - and tighten the nut - 4 -.

• Selector lever shaft must not be bend when pressing the selector lever cable on, counterhold if necessary.

- Carefully press the selector lever cable - 2 - onto the selector lever shaft. Be careful not to bend the selector lever.





Install in reverse order of removal pay attention to the following:

- Install the noise insulation.
