Transmission, Installing
Transmission, Installing
Procedure
• => [ General Repair Information ] General Repair Information.
• => [ Clean Working Conditions ] Clean Working Conditions.
• When installing, bring all cable ties back to same positions.
- Check whether the bushing - arrow - is inserted in the rear of the crankshaft. Drive in the bushing if necessary.
- Check the installed dimension - a - of the torque converter. Refer to => [ Torque Converter, Installing ] Removal and Replacement.
If the converter is not properly installed, the drive lugs on the converter and the Automatic Transmission Fluid (ATF) pump will be severely damaged when the transmission is attached to the engine.
- Make sure the alignment bushings - A - for centering the engine/transmission are installed in the engine. Install them if necessary.
Danger of leaks on the torque converter seal.
• The covers - items 3 through 8 -=> [ Covers ] Description and Operation prevent dust and dirt from getting into the torque converter bellhousing. Install the covers if necessary.
- Before putting the engine and transmission together, rotate the engine torque converter and drive plate so that the holes or threaded holes are at the same height as the opening for the starter - arrows -.
- Ensure no lines are kinked when sliding the engine and transmission together.
- Always use new bolts to secure the torque converter to the drive plate. Refer to the Parts Catalog.
Note the following when installing the transmission.
Before and during installing the engine/transmission bolts, check that the torque converter can still be turned behind the drive plate. If the torque converter cannot be turned, it must be assumed that it has not been installed properly and that the drive plate or the ATF pump will be destroyed during final tightening of the bolts.
- Install the transmission to the engine.
- Rotate the crankshaft 120° in direction of engine rotation and install the torque converter bolts through the opening for the starter and tighten them hand-tight.
• The tightening specifications apply only to lightly lubricated, oiled, phosphated or blackened nuts and bolts.
• Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
• Do not use any ungreased parts.
• Tightening specification tolerance: ± 15%.
- Rotate the crankshaft 120° in direction of engine rotation and install the torque converter bolts through the opening for the starter and tighten them hand-tight. Refer to => [ Torque Converter Overview ] Description and Operation.
Engine/Transmission Bolt Tightening Sequence and Specifications
Further installation in reverse order, pay attention to the following:
- Install the starter.
- Install the generator.
- Install the transfer case.
- Install the rear driveshaft.
- Install the ATF pipes. Refer to => [ ATF Pipes and Cooler ] Removal and Replacement.

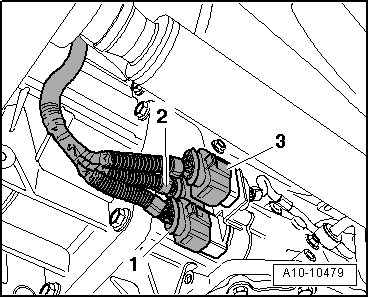

- Check the connectors - 1 through 3 - at transmission for water entry or contact corrosion, correct if necessary.
- Connect the connectors - 1 through 3 -.
- Secure the front driveshaft to the transfer case.
- Install the air filter housing.
- Install the left rear coolant pipe to the transmission.
- Install the primary catalytic converter.
- Install the particulate filter.
- Install the selector lever cable and check the adjustment. Refer to => [ Selector Lever Cable ] Selector Lever Cable.
- Align the exhaust system free of tension.
- Install the wheel housing liner.
- Install the front wheels.
- Be sure to follow the procedure for connecting the battery and afterwards.
Do not use a charging unit as a starting aid. Vehicle control modules could be damaged.
- Check the ATF level. Refer to => [ ATF Level, Checking and Filling ] ATF Level, Checking and Filling.
- After installing an exchanged transmission or after repairing transmission, refer to => [ ATF Pipes and Cooler, Cleaning ] Service and Repair

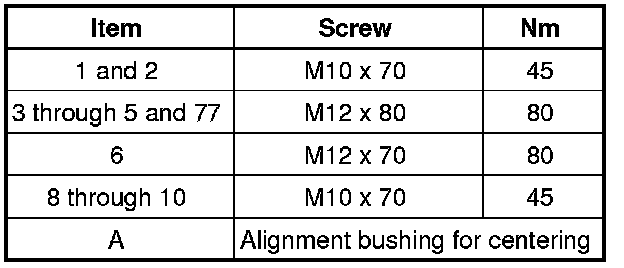

Tightening Specifications
• The tightening specifications apply only to lightly lubricated, oiled, phosphated or blackened nuts and bolts.
• Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
• Do not use any ungreased parts.
• Tightening specification tolerance: ± 15 %.
