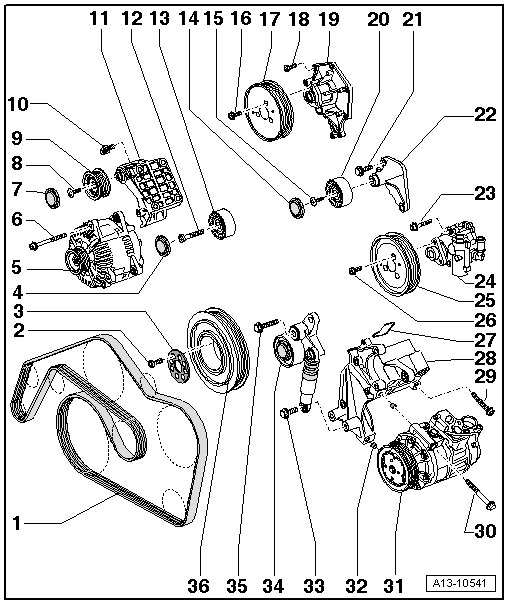

Ribbed Belt Drive Overview
Ribbed Belt Drive Overview
1 Ribbed Belt
• Check for wear
• Before removing, mark the direction of rotation using chalk or a felt-tip pen.
• Removing and installing, refer to => [ Ribbed Belt ] Ribbed Belt
• Do not kink
• When installing, make sure it is seated correctly on the ribbed belt pulleys
2 Bolt
• 20 Nm plus an additional 90° turn
• Replace
3 Shim
• Replace
4 Idler Roller Cover
5 Generator
6 Bolt
7 Idler Roller Cover
8 Bolt
• 23 Nm
9 Idler Roller for Ribbed Belt
• On the generator bracket
• Pay attention to the installed position
10 Bolt
• 40 Nm
11 Generator and Idler Roller Bracket
12 Bolt
• 23 Nm
13 Right Idler Roller for Ribbed Belt
• Pay attention to the installed position
14 Left Idler Roller Cover
15 Bolt
• 23 Nm
16 Bolt
• Tightening specifications - item 13 - => [ (Item 13) Bolt ] Service and Repair
17 Ribbed Belt Pulley for Coolant Pump
• Removing and installing, refer to => [ Coolant Pump ] Coolant Pump
18 Bolt
• Tightening specification and sequence, refer to => [ Coolant Pump - Tightening Specification and Sequence ] Service and Repair
19 Coolant Pump
• Removing and installing, refer to => [ Coolant Pump ] Coolant Pump
20 Left Idler Roller for Ribbed Belt
• Removing and installing, refer to => [ Left Ribbed Belt Idler Roller ] Left Ribbed Belt Idler Roller
• Pay attention to the installed position
21 Bolt
• 23 Nm
22 Idler Roller Holder
23 Bolt
24 Power Steering Pump
25 Power Steering Pump Ribbed Belt Pulley
26 Bolt
27 Gasket
• Replace
28 Bracket for Assemblies
• Removing and installing, refer to => [ Left Coolant Pipe ] Left Coolant Pipe
29 Bolt
• 40 Nm
30 Bolt
31 A/C Compressor
• Do not remove or disconnect refrigerant lines
• Be careful of the alignment sleeves - item 32 - when installing
32 Alignment Bushing
• 2 pieces
• Make sure the accessory assembly bracket fits correctly
33 Bolt
• 23 Nm
34 Ribbed Belt Tensioning Damper
• Removing and installing, refer to => [ Ribbed Belt Tensioner ] Service and Repair
35 Bolt
• 50 Nm plus an additional 90° turn
• Replace
36 Vibration Damper with Ribbed Belt Pulley
• Removing and installing, refer to => [ Vibration Damper with Ribbed Belt Pulley, ] Service and Repair
