Coolant Pump

Coolant Pump

Special tools, testers and auxiliary items required

• Spanner Wrench (3212)

Removing

- Drain the coolant. Refer to => [ Cooling System, Draining and Filling ] Procedures.

- Remove the ribbed belt from the tensioning element. Refer to => [ Ribbed Belt ] Ribbed Belt.

- Tilt the toothed belt guard forward - arrows - and disengage the pins on the underside of the guard.






• The toothed belt guard is shown with the intake manifold upper section removed.

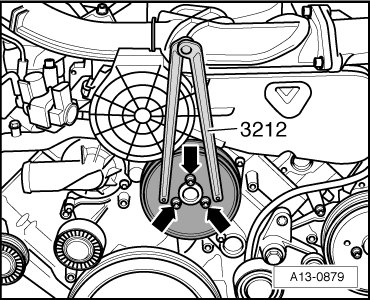

- Using a (3212) as a counterholder, remove the bolts - arrows - and remove the coolant pump ribbed belt pulley.






- Remove the bolts and remove the coolant pump - arrow -.






Installing

Install in reverse order of removal. Note the following:

- Clean the sealing surface.

- Tighten the coolant pump bolts. Refer to => [ Coolant Pump - Tightening Specification and Sequence ] Service and Repair.

- Install the ribbed belt. Refer to => [ Ribbed Belt ] Ribbed Belt.

- Fill with coolant => [ Filling ] Procedures.
