Instrument Panel Center Section

Instrument Panel Center Section

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1410)

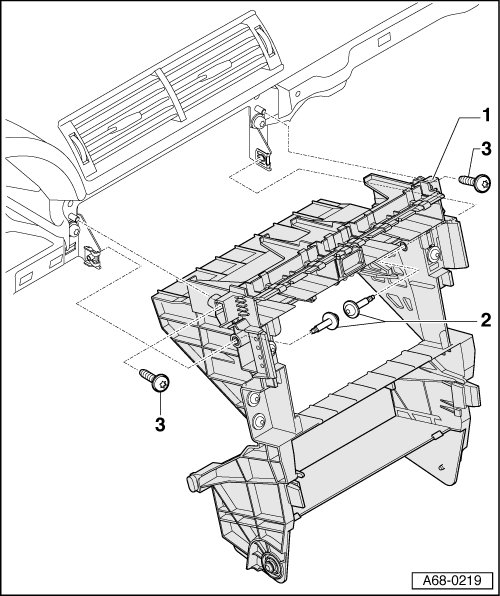

1 Instrument Panel Center Section

• Removal:

- Remove center console:

• Center Console, Removing and Installing, USA through October 2004

• Center Console, Removing and Installing, USA from November 2004, Refer to => [ Center Console, from November 2004 ] Center Console, From November 2004.

- Remove front ashtray. Refer to => [ Front Ashtray ] Front Ashtray.

- Remove radio and radio trim.

- Remove A/C control head or heater controls.

- Remove trim from cup holder. Refer to => [ Cupholder and Storage Compartment ] Cupholder and Storage Compartment.

- Remove bolts - 2 - on center part of instrument panel.

- Remove bolts - 3 - on center part of instrument panel.

- Remove instrument panel center section.

• Installing:

To install, perform the steps used in removal in reverse order.

2 Screws, (Qty. 2)

• Tightening specification 5 Nm

3 Screws, (Qty. 2)

• Tightening specification 5 Nm
