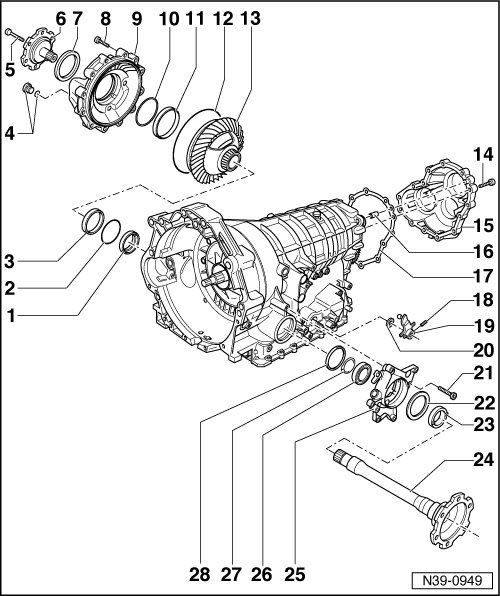

Front Final Drive, Component Overview

Front Final Drive, Component Overview

• Transmission installed

• General repair notes. Refer to => [ Components ] Components.

• Rules of cleanliness for working on automatic transmissions. Refer to => [ Clean Working Conditions ] Clean Working Conditions.





1 Seal

• Between final drive and transmission housing

• Always replace. Refer to => [ Final Drive/Transmission Housing Seal ] Final Drive/Transmission Housing Seal

2 Adjustment shim

• Behind tapered roller bearing outer race

3 Tapered roller bearing outer race

4 Locking screw - 30 Nm

• With seal

• Always replace

5 Bolt - 23 Nm

6 Right drive flange

7 Right drive flange seal

• Always replace, refer to => [ Right Drive Flange Seal ] Right Drive Flange Seal

8 Bolt - 23 Nm

• Observe tightening sequence => [ Installing ] Final Drive Cover O-Ring Seal

9 Cover for final drive

10 Adjustment shim

• Behind tapered roller bearing outer race

11 Tapered roller bearing outer race

12 O-ring

• Always replace, refer to => [ Final Drive Cover O-Ring Seal ] Final Drive Cover O-Ring Seal

13 Differential

14 Bolt - 23 Nm

• Observe tightening sequence => [ Check ATF level and top off ] Front Final Drive Seal

15 Cover for front final drive

• Front wheel drive version shown

• All Wheel Drive (AWD) version => [ (Item 31) Intermediate flange for front final drive ]

16 Bushing

17 Gasket

• Always replace, refer to => [ Front Final Drive Seal ] Front Final Drive Seal

18 Spring dowel sleeve

19 Lever

• For shift rod

20 Seal

• For shift rod

• Always replace, refer to => [ Shift Rod Seal ] Shift Rod Seal

21 Bolt - 23 Nm

22 Left drive flange seal

• Always replace, refer to => [ Left Drive Flange, Seal, and Grooved Ball Bearing ] Left Drive Flange, Seal, and Grooved Ball Bearing

23 Drive gear

• For speedometer Vehicle Speed Sensor (VSS) (G22 )

• Installation position => [ Set drive gear for on drive flange (arrow). ] Left Drive Flange, Seal, and Grooved Ball Bearing

24 Left drive flange

• Removing and installing, refer to => [ Left Drive Flange, Seal, and Grooved Ball Bearing ] Left Drive Flange, Seal, and Grooved Ball Bearing

25 Mounting bracket for drive flange

26 Grooved ball bearing for drive flange

• Always replace, refer to => [ Left Drive Flange, Seal, and Grooved Ball Bearing ] Left Drive Flange, Seal, and Grooved Ball Bearing

27 Snap ring

28 O-ring

• Square cross section

• Remove and install left drive flange to replace, refer to => [ Left Drive Flange, Seal, and Grooved Ball Bearing ] Left Drive Flange, Seal, and Grooved Ball Bearing
