Final Drive, Differential (01V,01VA Transmission)

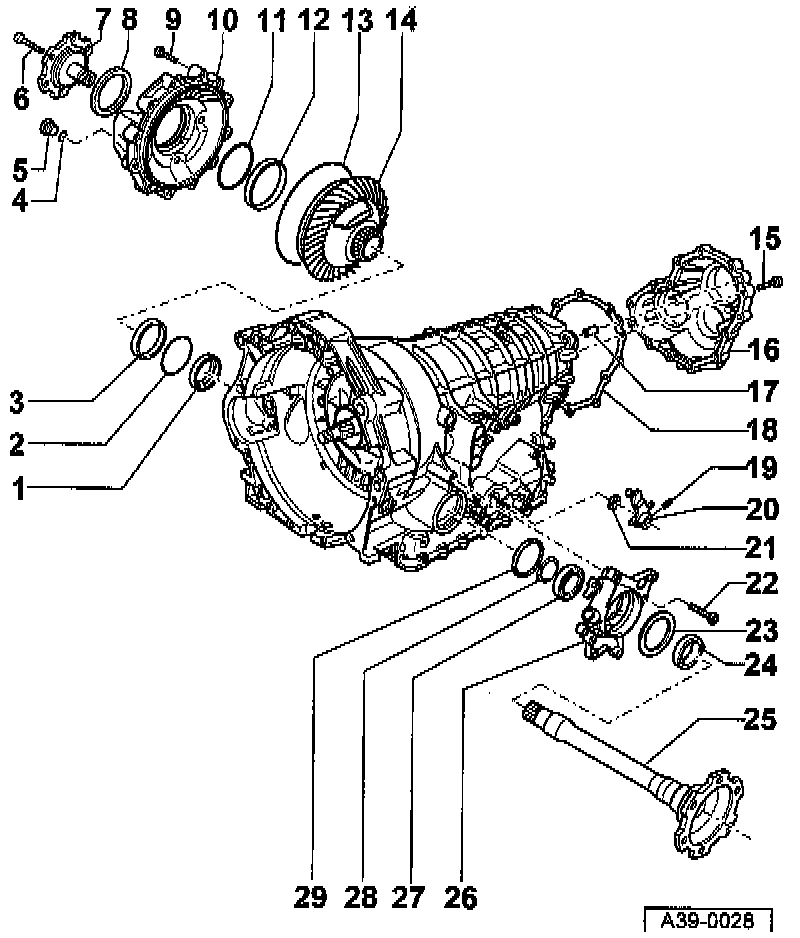

Front Final Drive Assembly Overview

General repair notes => [ Repair Information ] Repair Information.

Observe cleanliness rules when working on automatic transmissions => [ Cleanliness Working Conditions ] Cleanliness Working Conditions.





1 Shaft seal

Between final drive and transmission housing

Replace, refer to => [ Final Drive/Transmission Housing Shaft Seal, Replacing ] Final Drive/Transmission Housing Shaft Seal, Replacing

2 Adjustment shim

Behind taper roller bearing outer race

3 Taper roller bearing outer race

4 Oil seal

Cannot be replaced separately

5 Sealing plug, 35 Nm

Replace

6 Bolt, 23 Nm

7 Right drive flange

8 Shaft seal

For right flange shaft

Replace, refer to => [ Right Flange Shaft Seal ] Right Flange Shaft Seal

9 Bolt, 23 Nm

Observe tightening sequence, refer to => [ Final Drive Cover O-ring ] Final Drive Cover O-ring

10 Cover for final drive

11 Adjustment shim

Behind taper roller bearing outer race

12 Taper roller bearing outer race

13 O-ring

Replace, refer to => [ Final Drive Cover O-ring ] Final Drive Cover O-ring

14 Differential

15 Bolt, 23 Nm

Observe tightening sequence => [ Tighten the front final drive intermediate
flange in 2 steps: ] Front Final Drive Gasket, Replacing

16 Front final drive cover

Shown here: front wheel drive version

AWD version, refer to => Transmission and Drivetrain Transmission and Drivetrain

17 Alignment bushing

18 Gasket

Replace, refer to => [ Front Final Drive Gasket, Replacing ] Front Final Drive Gasket, Replacing

19 Spring pin

20 Lever

For selector shaft

21 Shaft seal

For selector shaft

Replace, refer to => [ Selector Shaft Seal ] Selector Shaft Seal

22 Bolt, 23 Nm

23 Shaft seal

For left flange shaft

Replace, refer to => [ Left Flange Shaft Seal and Grooved Ball Bearing ] Left Flange Shaft Seal and Grooved Ball Bearing

24 Drive gear

For Speedometer Vehicle Speed Sensor (VSS) (G22 )

Location => [ Mount the transmission with the : place the on the
flange shaft. ] Left Flange Shaft Seal and Grooved Ball Bearing

Not installed on all versions

Transmission with v (G22), refer to => [ Transmission, All Wheel Drive, Code Letters, Assembly Allocation, Gear Ratios, Equipment ]

25 Flange shaft, left

Removing and installing, refer to => [ Left Flange Shaft Seal and Grooved Ball Bearing ] Left Flange Shaft Seal and Grooved Ball Bearing

26 Mounting bracket for flange shaft

27 Grooved ball bearing for flange shaft

Replace, refer to => [ Left Flange Shaft Seal and Grooved Ball Bearing ] Left Flange Shaft Seal and Grooved Ball Bearing

28 Securing ring

29 O-ring

Rectangular cross-section

Remove and install left drive flange to replace, refer to => [ Left Flange Shaft Seal and Grooved Ball Bearing ] Left Flange Shaft Seal and Grooved Ball Bearing
