Constantly Variable Transmission 01J
>>
Test Tables
>>
Display Group 010
Display Group 010
01J CVT A/T FWD

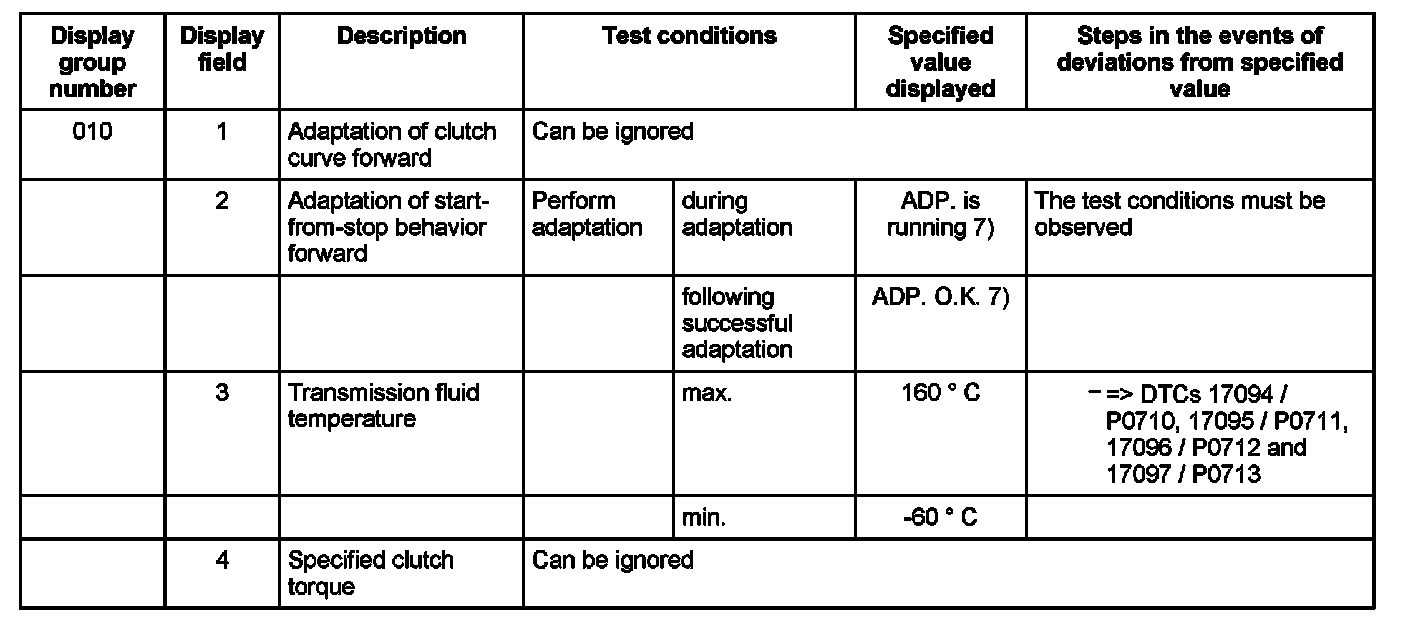

Display Group Number 010, Display Field (1-4):
7) "ADP" is the abbreviation for adaptation. Adaptation means adapting to an internal specified value.
