Readiness Code Reading

Readiness Code, Checking

Test sequence
- Connect vehicle diagnostic, testing and information system VAS 5051 and select vehicle system "01 -Engine electronics" in selection . Connecting VAS 5051/VAG 1551 Scan Tool (ST)

Engine must be run at idle.

Display on VAS 5051:







- Under -1- select diagnostic function "08 - Read measured value block".

Display on VAS 5051:







1 - Enter display group
- Enter "086" for "display group number 086" in field -2- and confirm entry by pressing -Q- button.

Display on VAS 5051:







- Check indication in display field -1-.

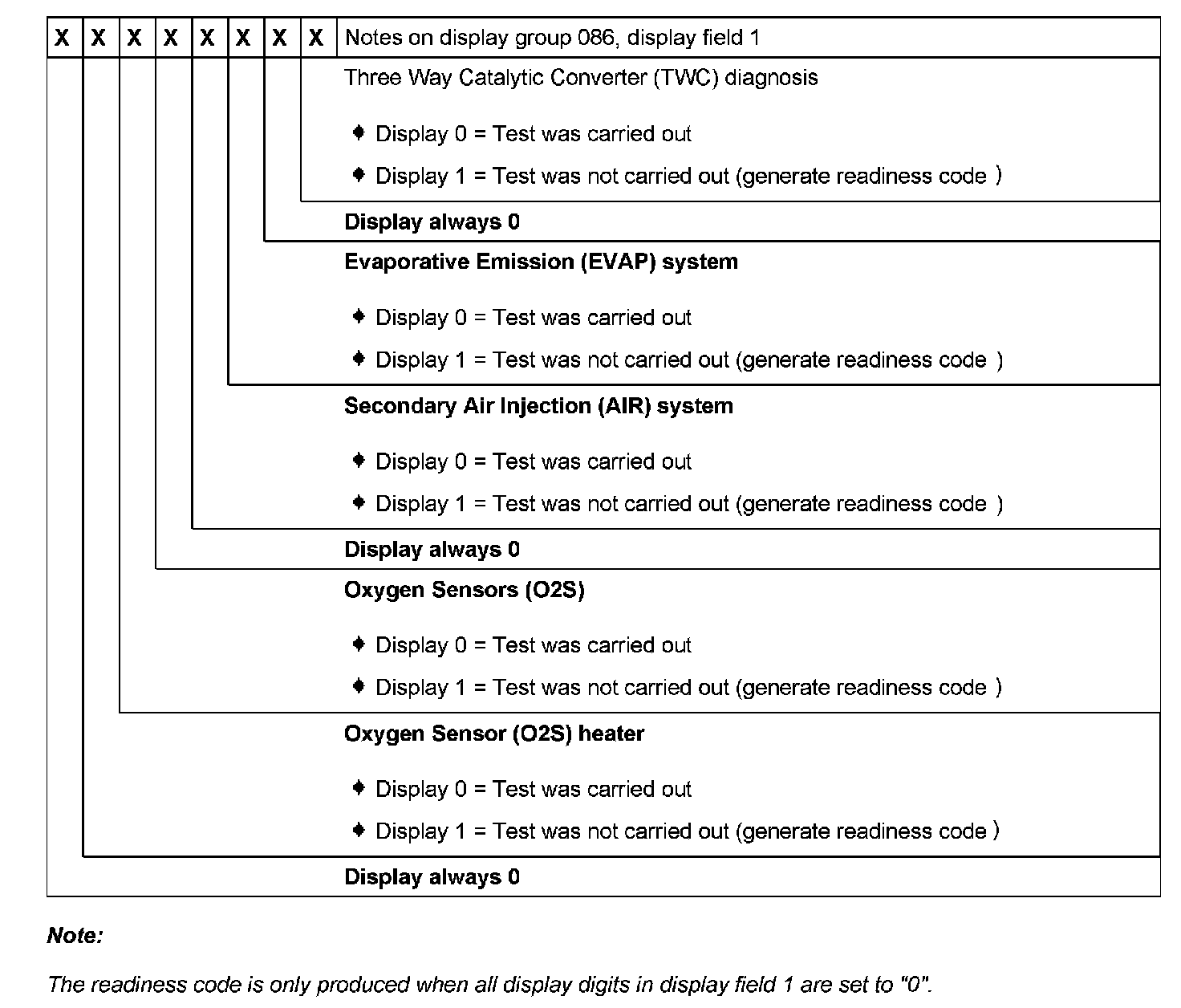

- Check readiness code in display field -1-.
- Specified value: 0 0 0 0 0 0 0 0

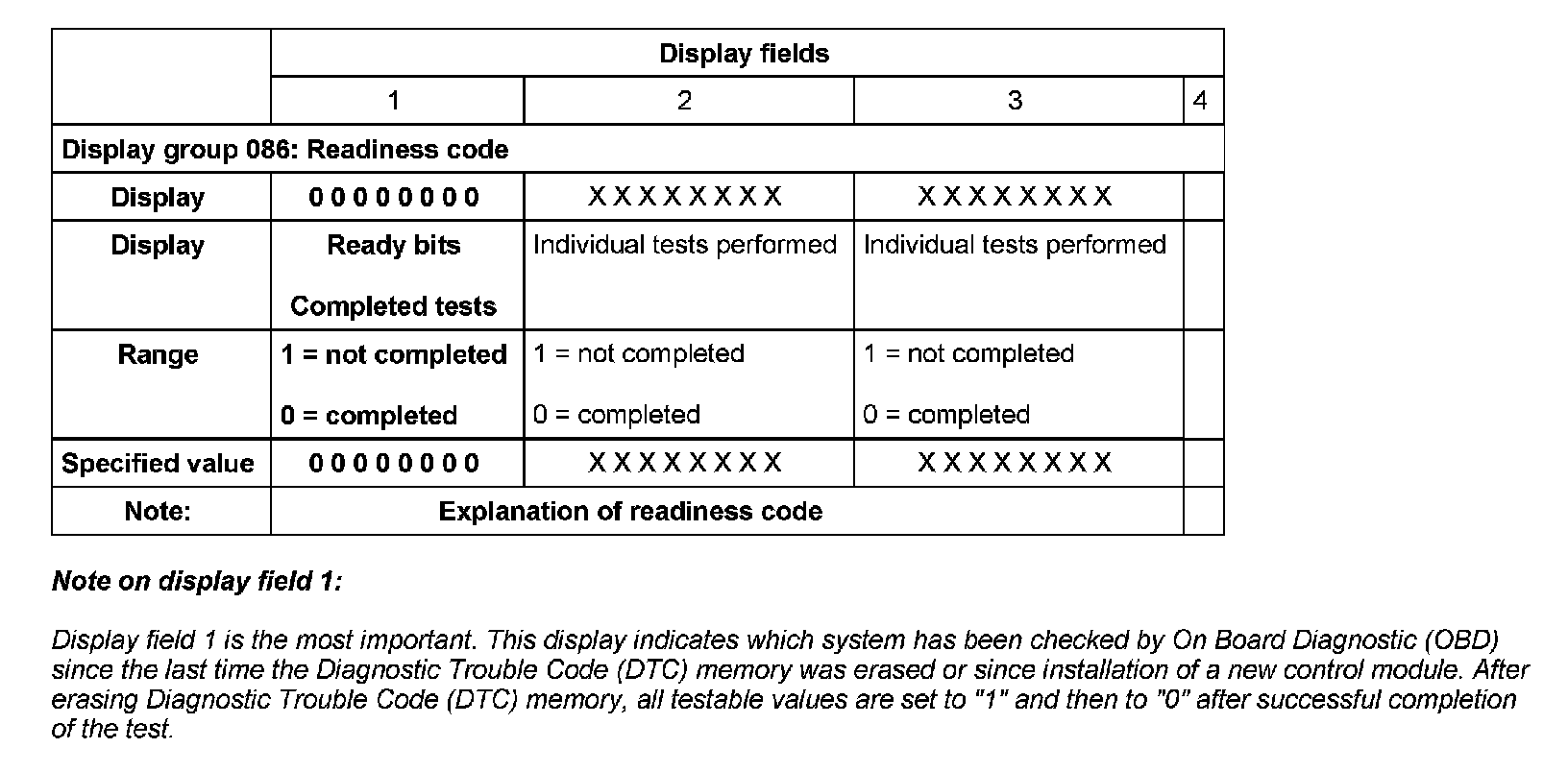

Display Group 086:

If specification "0 0 0 0 0 0 0 0" is achieved in display field 1:
- Press <- button.
- Check Diagnostic Trouble Code (DTC) memory to check (there must not be any stored DTCs). With Manufacturer's Scan Tool

If specified value is not obtained:
- Generate readiness code. Readiness Code, Generating
