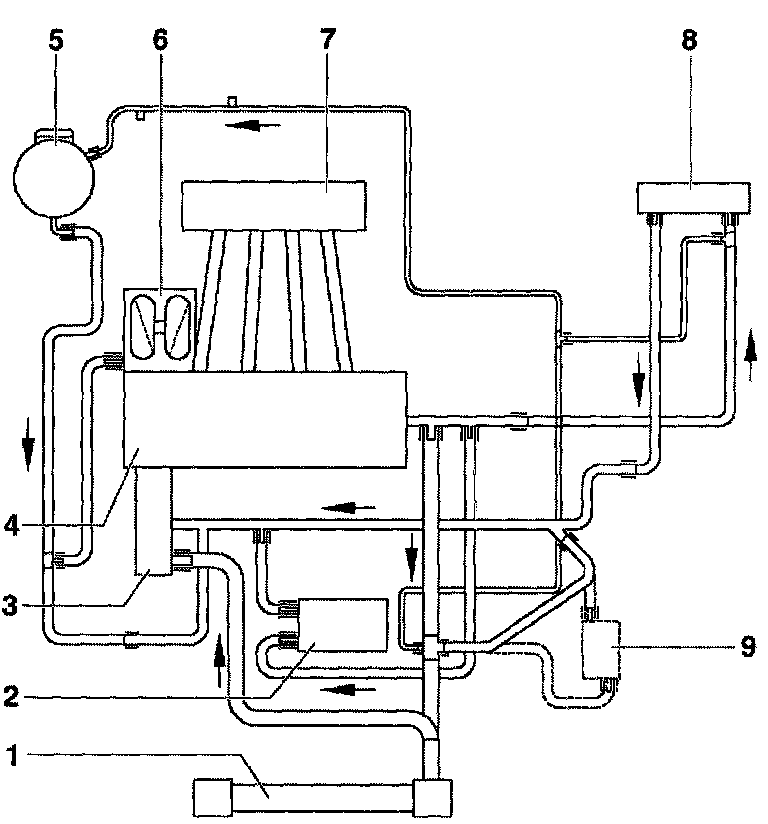

Engine Coolant System Components, Overview

Engine Coolant System Components, Overview




1 - Radiator
- After replacing replace entire coolant
2 - Oil cooler
3 - Coolant pump, coolant thermostat
- Removing and installing coolant pump, Service and Repair
- Check for ease of movement
- Removing and installing coolant thermostat, Service and Repair
4 - Cylinder block
5 - Expansion tank
- Checking filler cap, Testing and Inspection
6 - Turbocharger
7 - Intake manifold
8 - Heating system heat exchanger
9 - Gearbox oil cooler
- For ATF in automatic gearbox
