System Specifications
^
Only use coolant additive G 012 A8 D (according to TL VW 774 D). Characteristic: red color

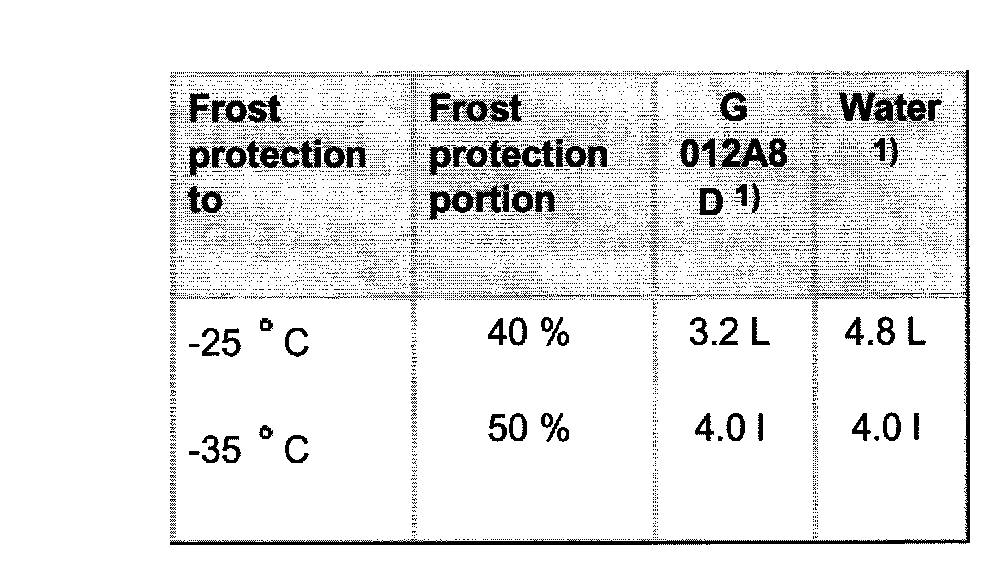

Recommended mixture ratios:
1)
Coolant quantity: 8.0 liters; can vary depending upon vehicle options.
