FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Audi
>>
1994
>>
S4 Sedan L5-2226cc 2.22L DOHC Turbo (AAN)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Read Measuring Value Block (Function 08)
>>
Read Measuring Block Value Specification Charts
Read Measuring Block Value Specification Charts

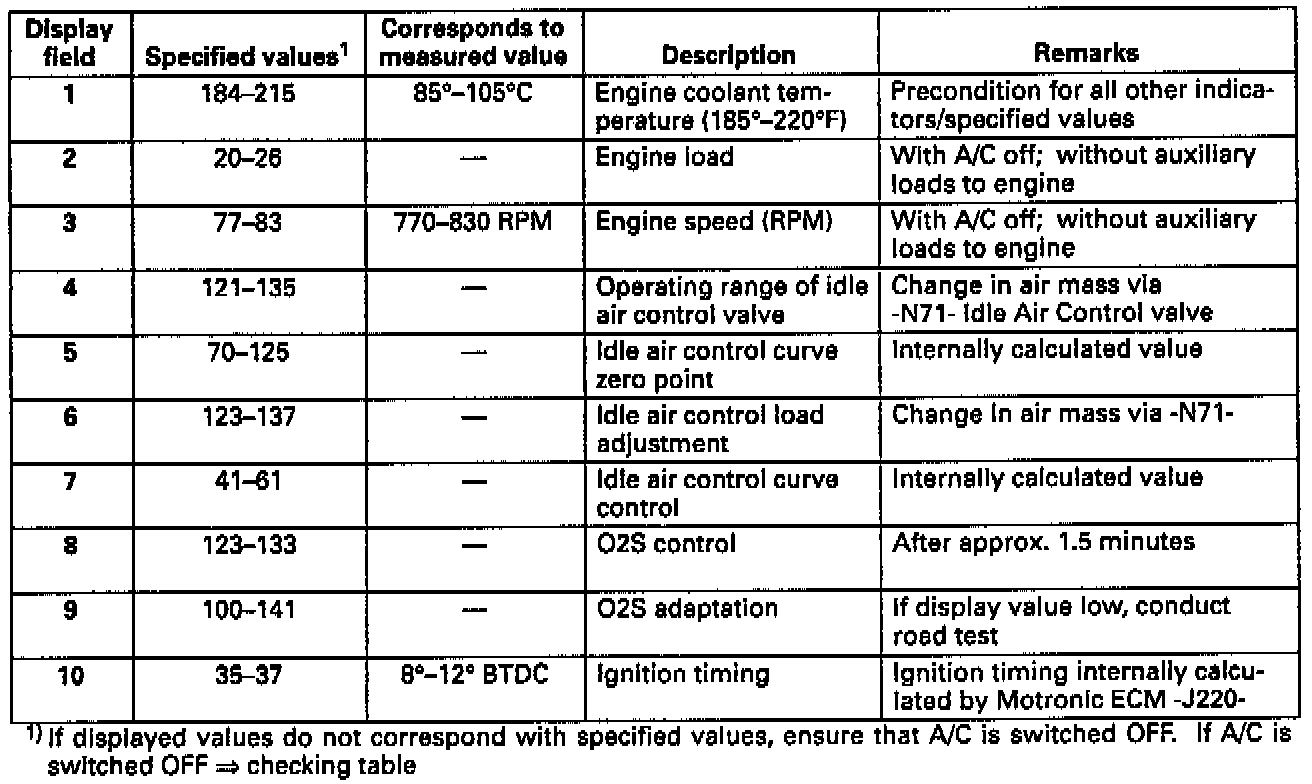

Specification Chart:
