Home >> Audi >> 1993 >> V8 Quattro V8-4.2L (ABH) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

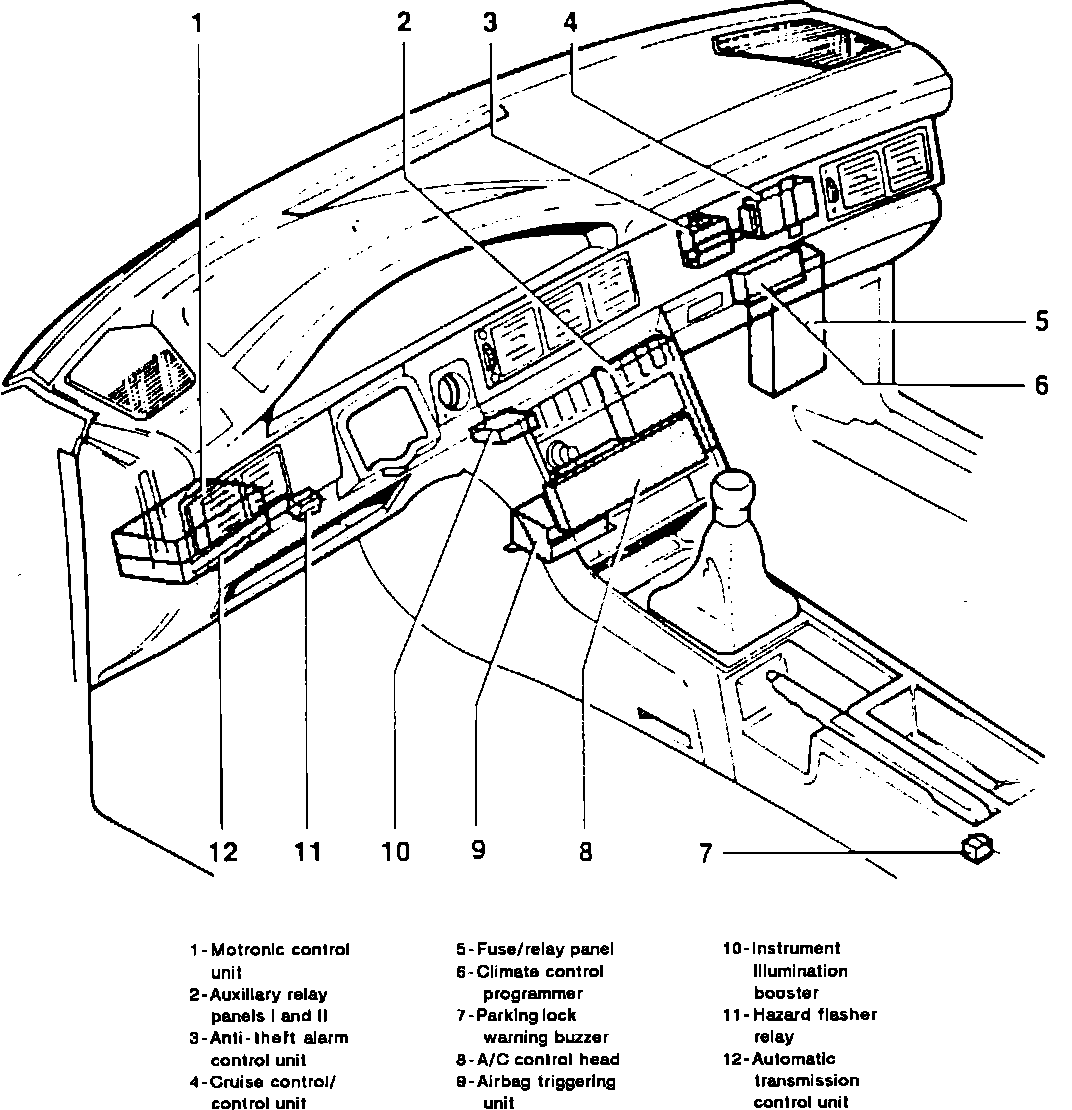

Passenger Compartment Components, Front:




Below Left side of dash, above footwell.
