Basic Setting (Function 04)
>>
Basic Engine Setting Specification Charts
>>
Automatic Transmission Up to 9/91 Production
Automatic Transmission Up to 9/91 Production

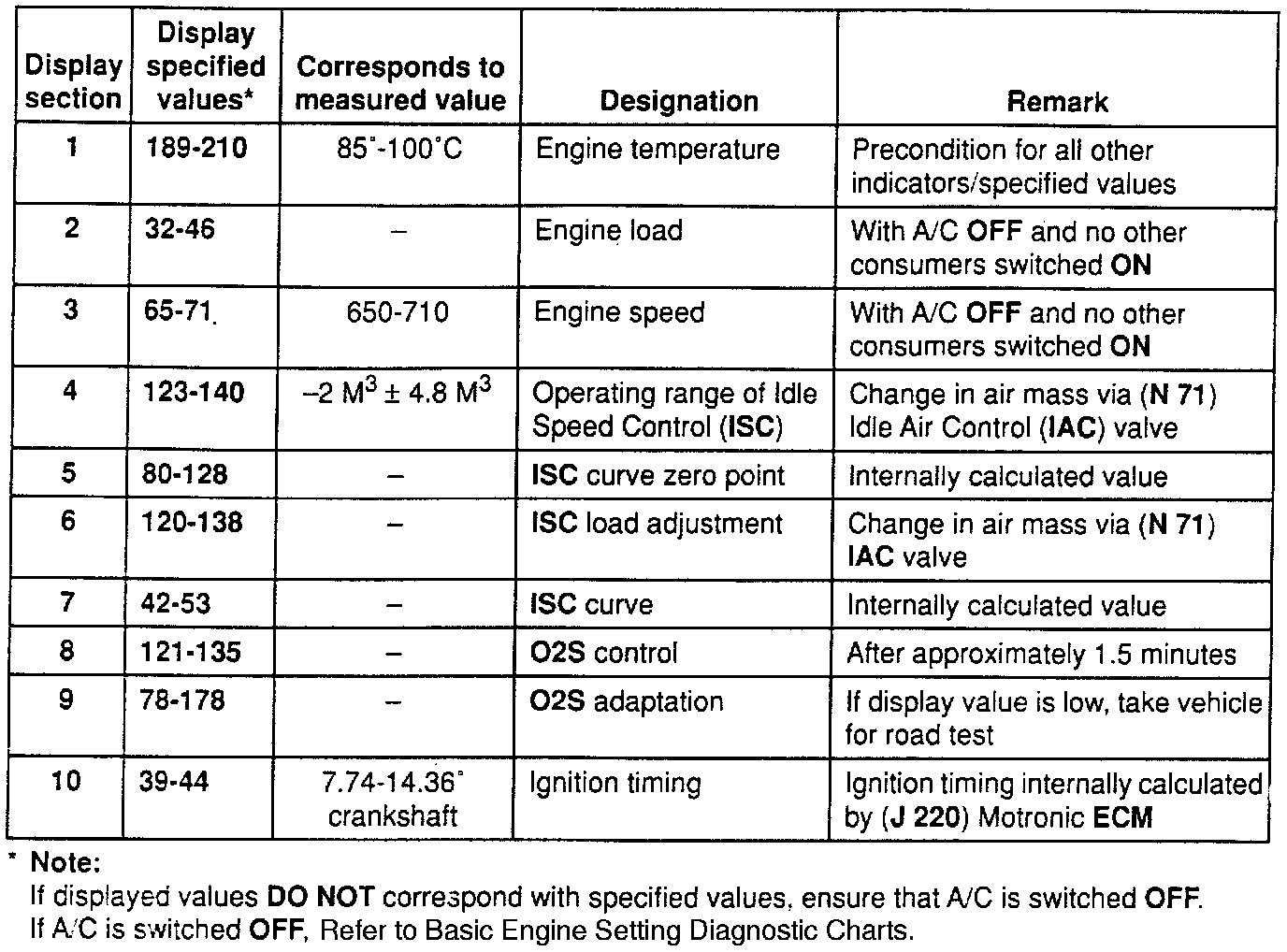

Engine Basic Setting Display Chart:
