Control Module: Locations

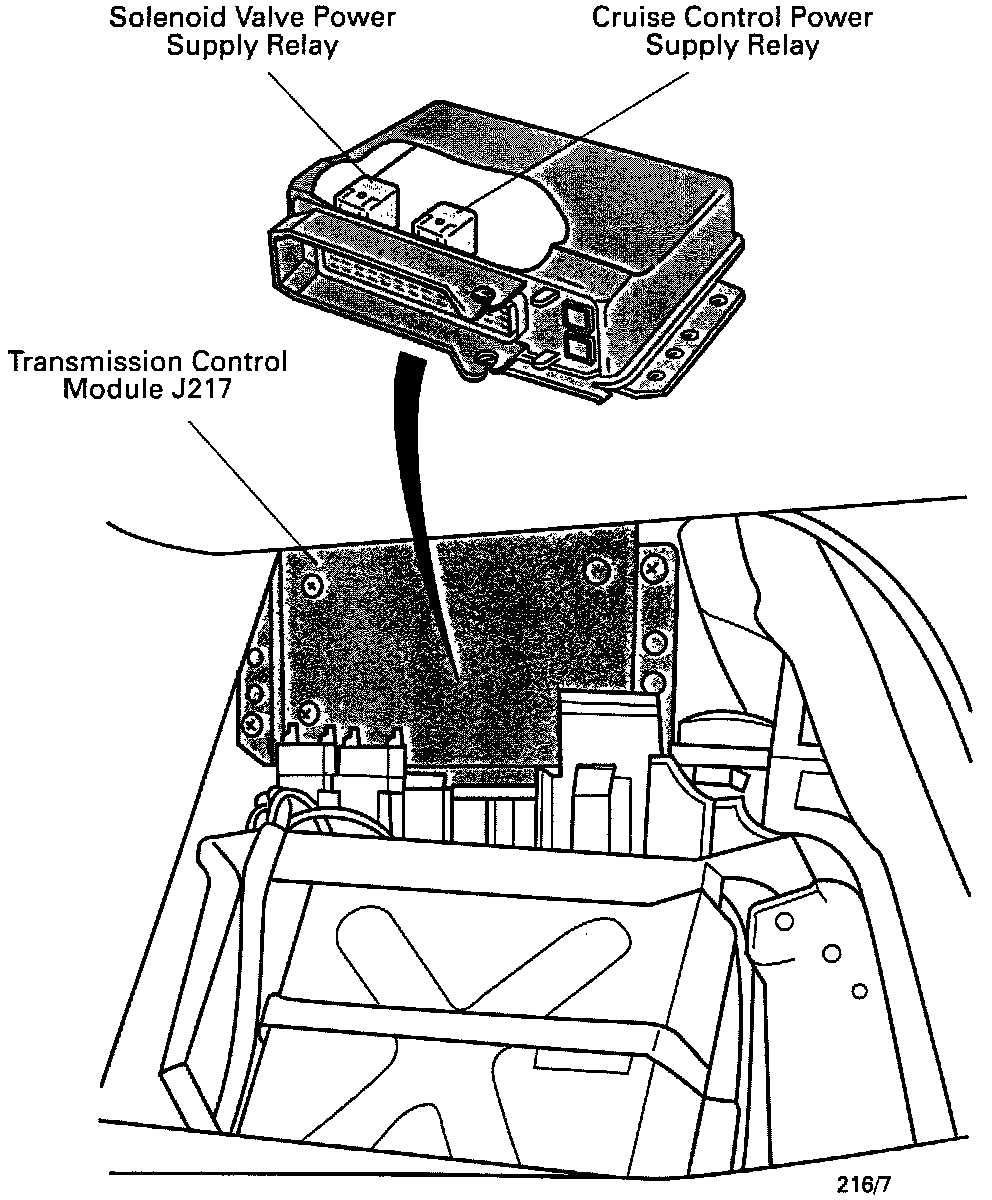

Transmission Control Module:

The Transmission Control Module is located in the Electronic Control Box in the front passenger footwell.
