FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Audi
>>
1992
>>
80 L5-2309cc 2.3L SOHC (NG)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
>>
Injection System

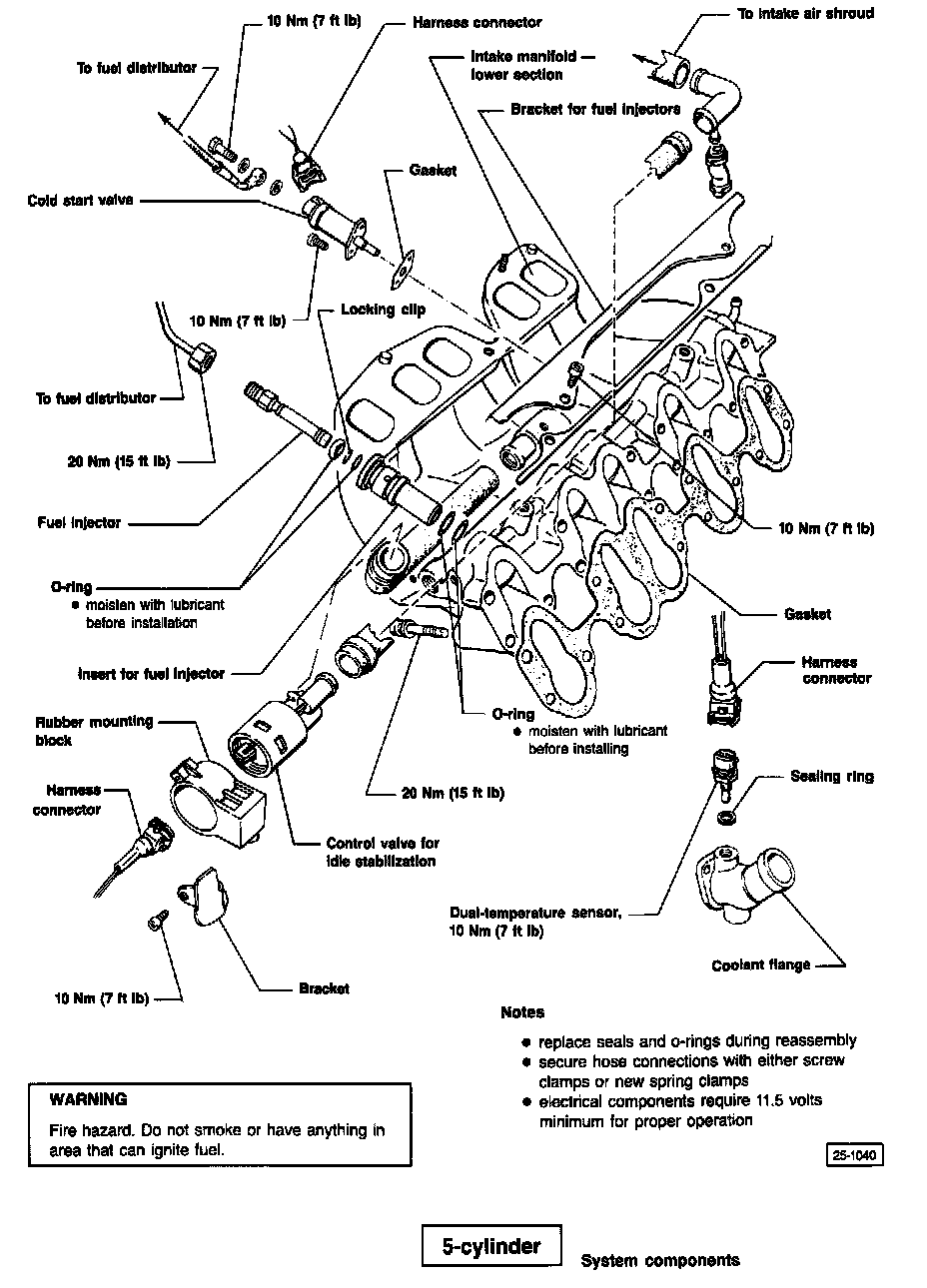

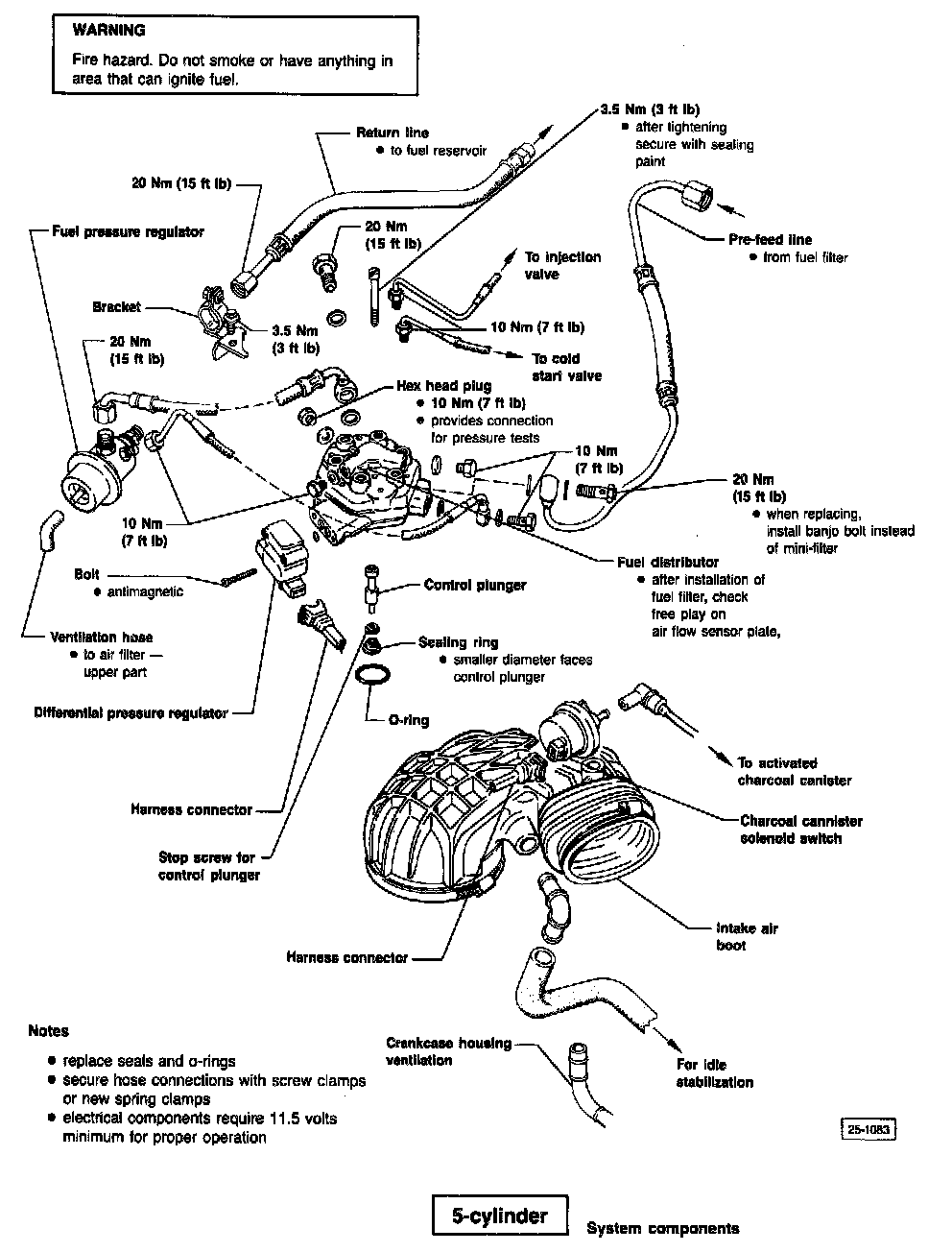

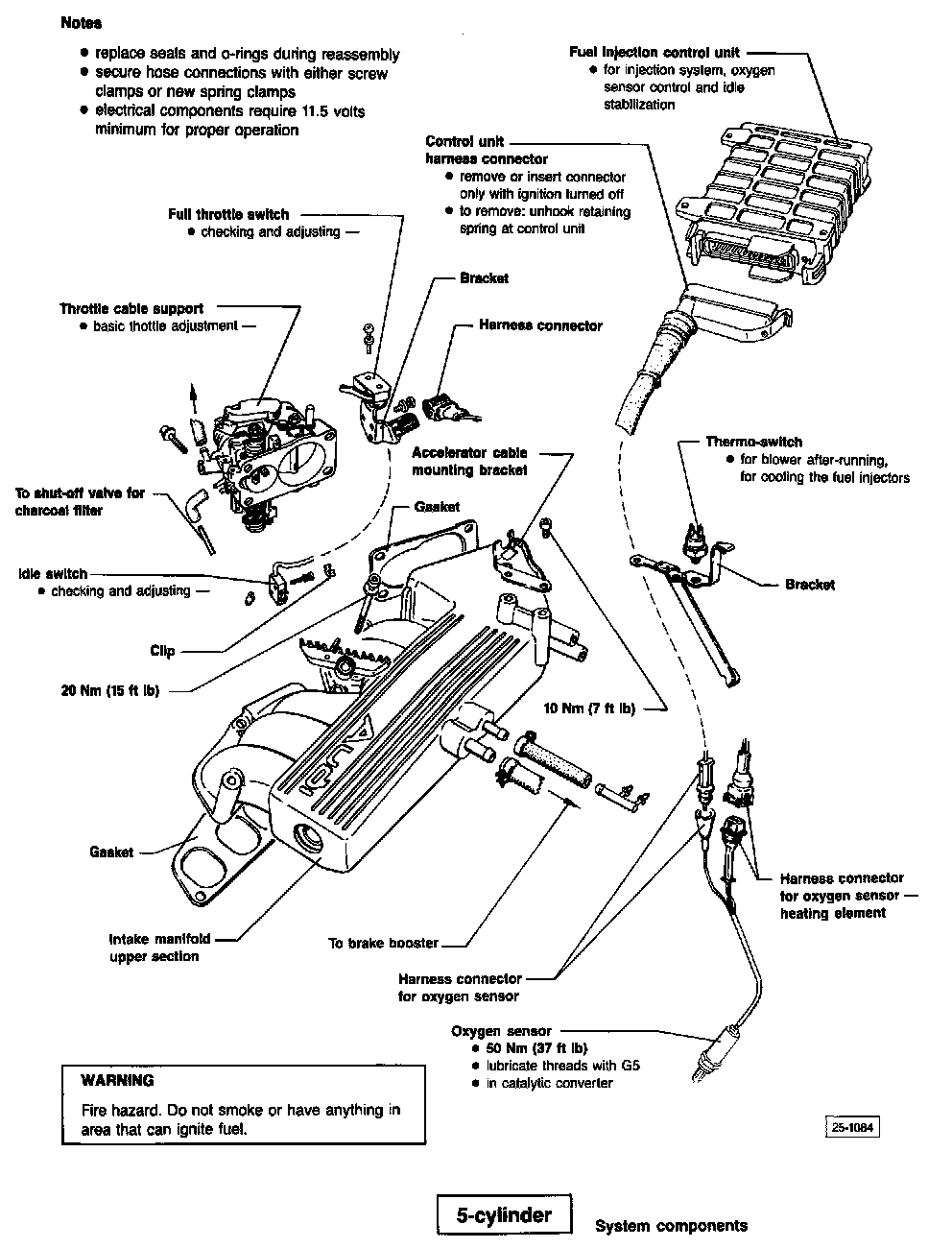

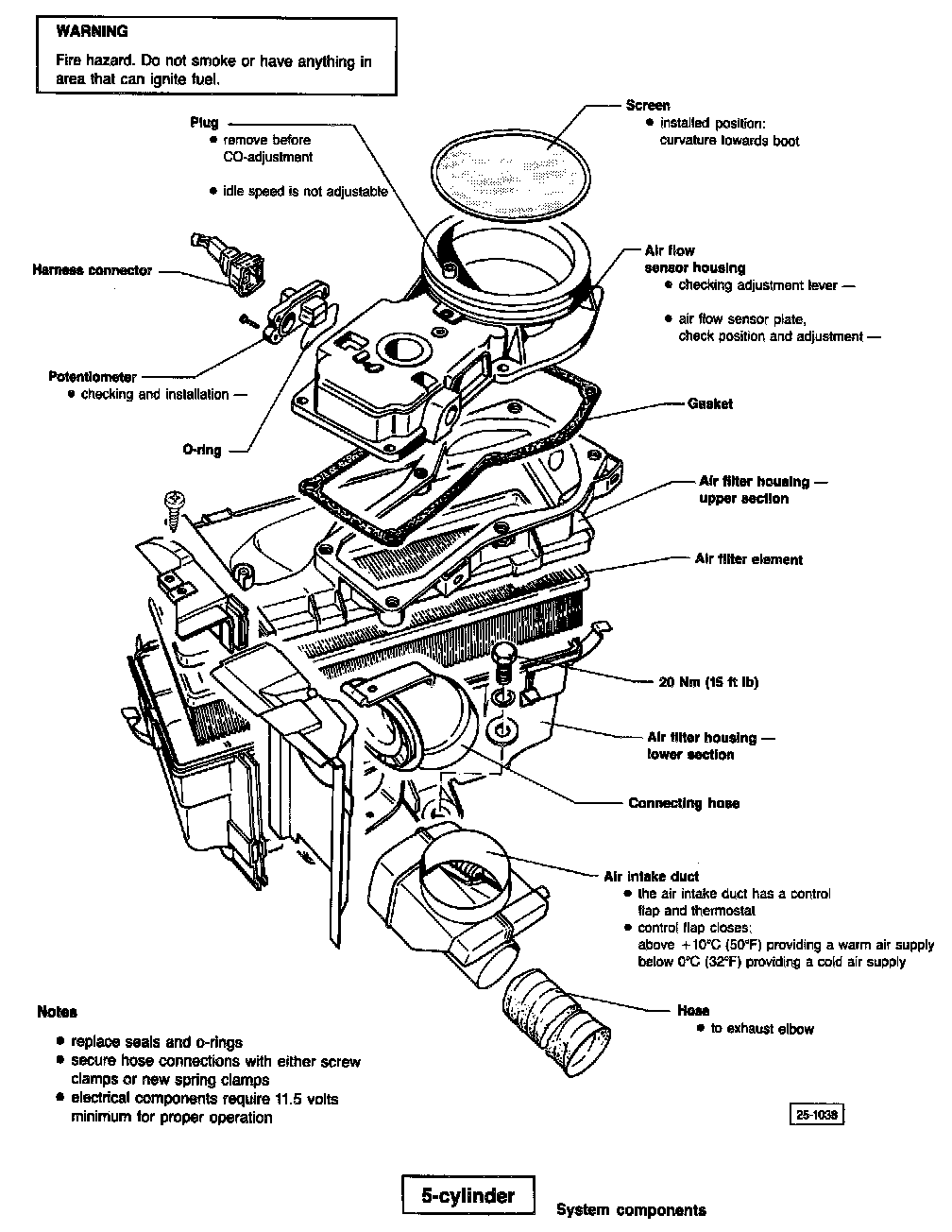

Injection System
I Of IV:
II Of IV:
III Of IV:
IV Of IV:
